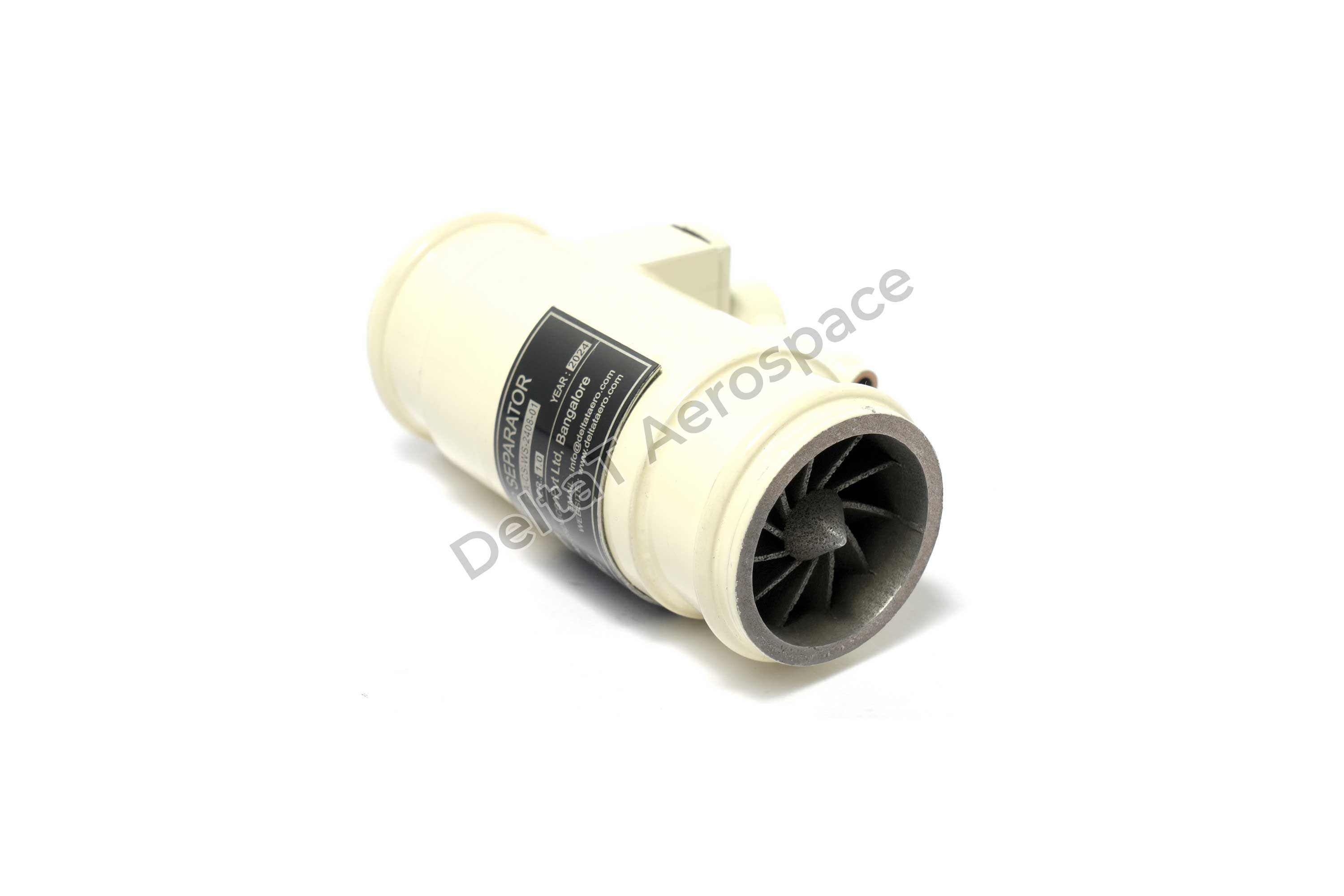

The high-pressure water separator is a critical component that used in environmental control system (ECS) to separate the water content from the aircraft line and to supply conditioned air to ECS compartment.

The water separator is having a swirl generator, a housing surrounding it, a separation section arranged around the housing for the collection of the water separated at the inner wall of the housing, which opens in a separation sump, and an one opening provided toward the separation chamber in the housing to remove the water.

Technical Specifications

• Inlet fluid

  Air + water droplets

• Max. operating pressure

  50.5 psi

• Operating temperature range

  Max Temperature 100 °C

• Weight

  350grams (Max)

• Overhaul life

  On condition

• Total Life of the component

  On condition

• Duty Cycle

  Continuous

• Max.flow rate

  6.5 KG/MIN at 70 deg c (NOMINAL)

• Inlet pressure

  18.7 PSIA (NOMINAL)

• Efficiency

  Free water extraction >=85%
