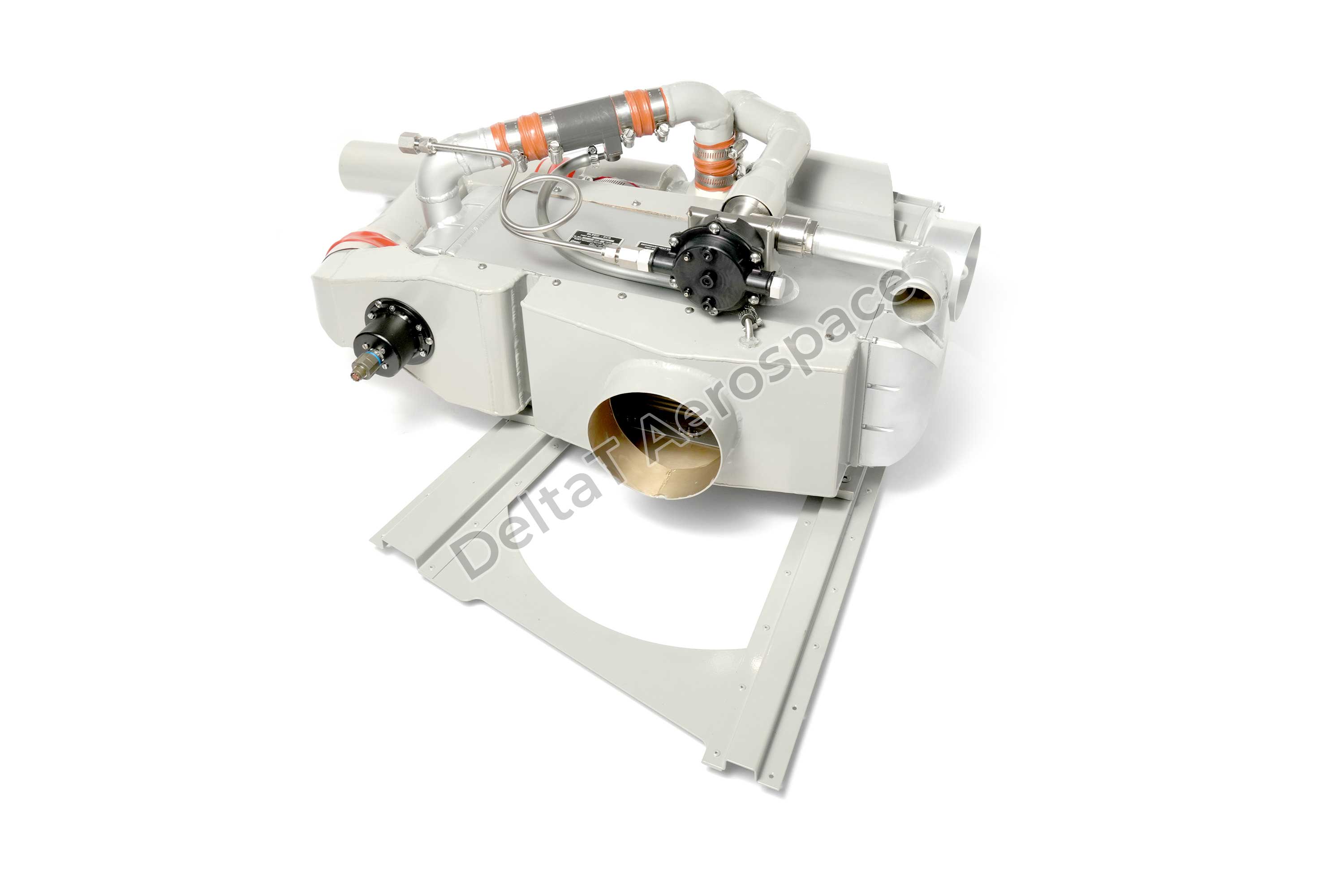

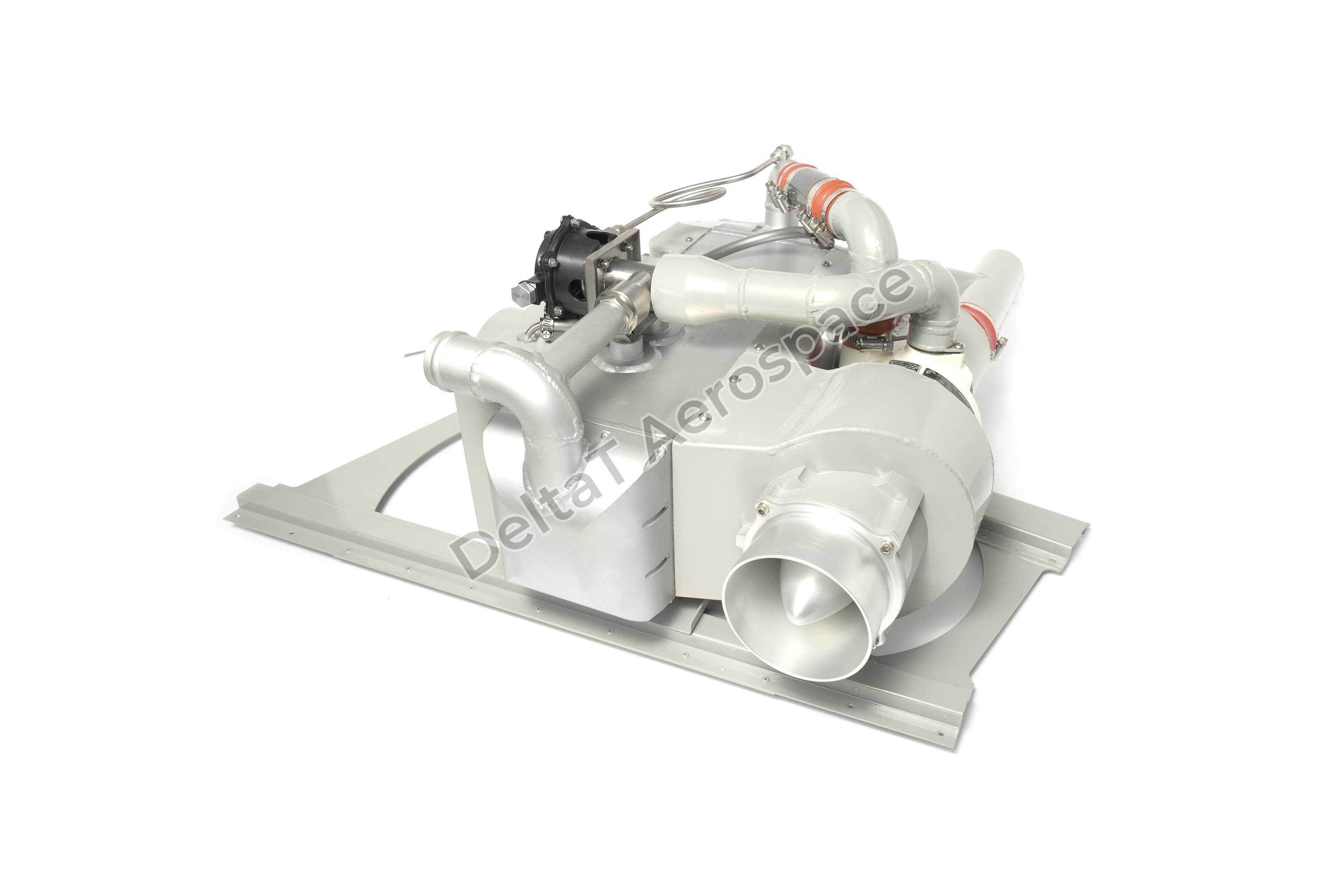

Bleed air-based air conditioning system

The bleed air based air conditioning system receives hot charge air from aircraft engine and reduces the temperature and humidity of the air for use as conditioned air. This conditioned air is used to cool the avionics/electronics equipment’s in aircraft (such as radar, EW system etc). The main components used in ACS is Compact Heat Exchanger, Air Cycle Machine , Water Separator, Jet Pump, Relief Valve, Water Injector, Temperature Sensors , Temperature Control Valve and Control Box.

Key Features

  1. High performance of air conditioning in hot climate
  2. Optimized weight
  3. Platform:Fixed and Rotary wing
  4. Application:Air Conditioning
  5. Use:ECS, Avionics, Mission System

Utilizes hot compressed air from the aircraft engine to deliver temperature and humidity-controlled air for cooling avionics and electronic systems.

    Technical Specifications

  • Cooling power

    4.5 kW

  • Power source

    Pressurized bleed air flow from the engine

  • Inlet air temperature

    200 deg c(max)

  • Air flow rate and pressure

    4-7.5 kg/min @ 3.5 bar

  • Temperature outlet range(nominal)

    0 to 6 °C

  • Temperature outlet(max)

    -20 °C at +50°C OAT

  • Weight

    13.5 kgs

  • Dimensions

    650x550x300mm
Technical Specifications
Cooling power 4.5 kW
Power source Pressurized bleed air flow from the engine
Inlet air temperature 200 deg c(max)
Air flow rate and pressure 4-7.5 kg/min @ 3.5 bar
Temperature outlet range(nominal) 0 to 6 °C
Temperature outlet(max) -20 °C at +50°C OAT
Weight 13.5 kgs
Dimensions 650x550x300mm
