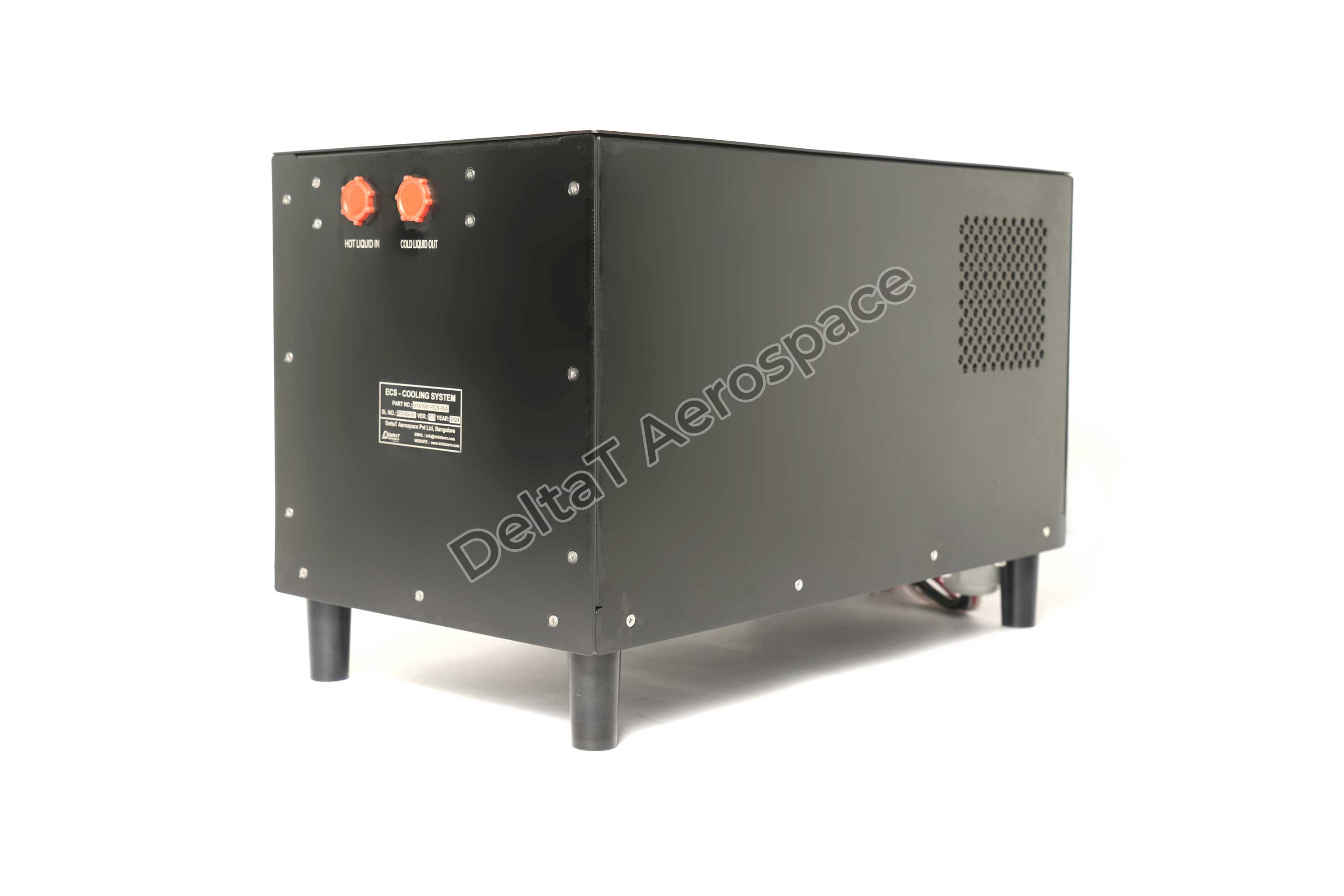

ECS /RAM air-based cooling unit

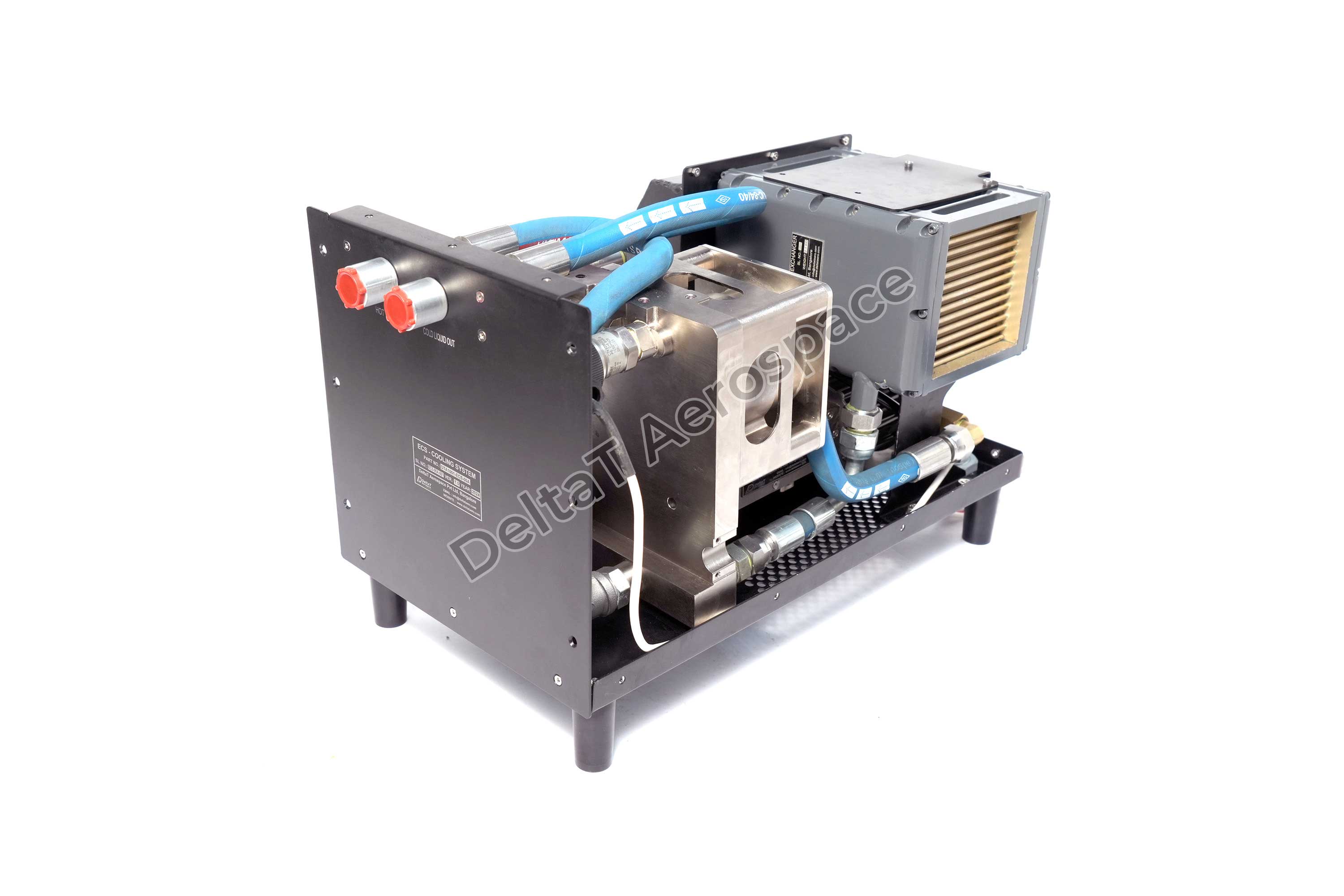

The ECS/RAM air based cooling system receives hot fluid from the payload and get cooled by using a ECS or RAM air to remove the heat load from the system.The main components used in ECS based LCS is compact heat exchanger, accumulator, gerotor pump, relief valve, temperature and pressure sensor, Liquid circulation unit, Liquid filter ,ECU.

Key Features

  1. Fully integrated unit
  2. High compactness
  3. Optimized performance
  4. Controls Liquid temperature
  5. Platform:Fighter aircraft
  6. Application:Liquid cooling
  7. Use:Electronic warfare, Radar cooling etc

Efficiently removes heat from payloads by transferring it to environmental control system (ECS) or RAM air.

    Technical Specifications

  • Cooling power

    2 kW

  • Power source

    ECS /Ram Air

  • Cooling media

    Air

  • Hot fluid

    Nycosol 51 /LENA

  • Air flow rate and pressure

    2 to 12.5 kg/min @ 1.2 bar (max)

  • Altitude from

    0 upto 50,000 ft

  • Temperature outlet(max)

    -20 °C at +50°C OAT

  • Weight

    7 kgs

  • Dimensions

    300x250x200 mm
Technical Specifications
Cooling power 2 kW
Power source ECS /Ram Air
Cooling media Air
Hot fluid Nycosol 51 /LENA
Air flow rate and pressure 2 to 12.5 kg/min @ 1.2 bar (max)
Altitude from 0 upto 50,000 ft
Temperature outlet(max) -20 °C at +50°C OAT
Weight 7 kgs
Dimensions 300x250x200 mm
