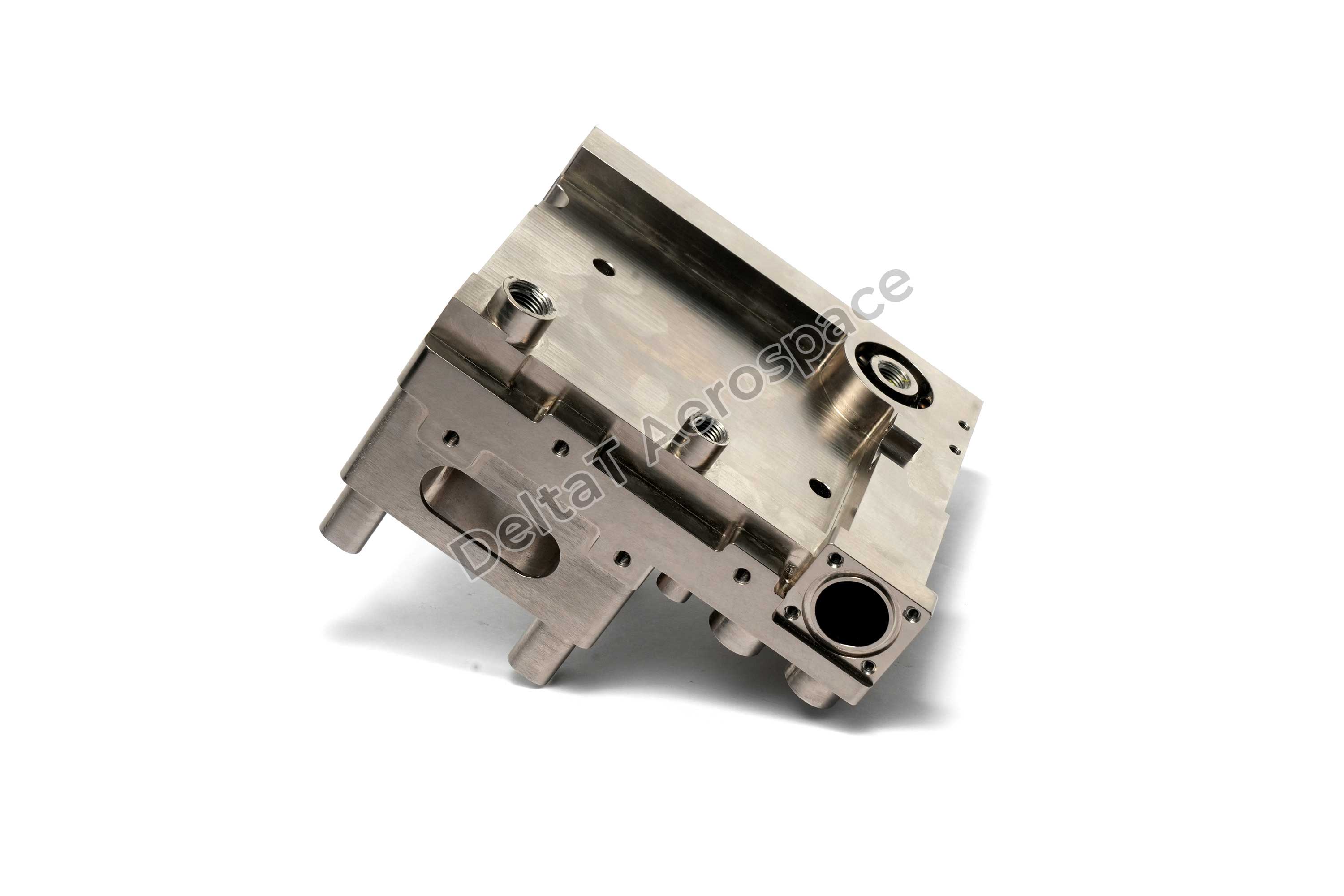

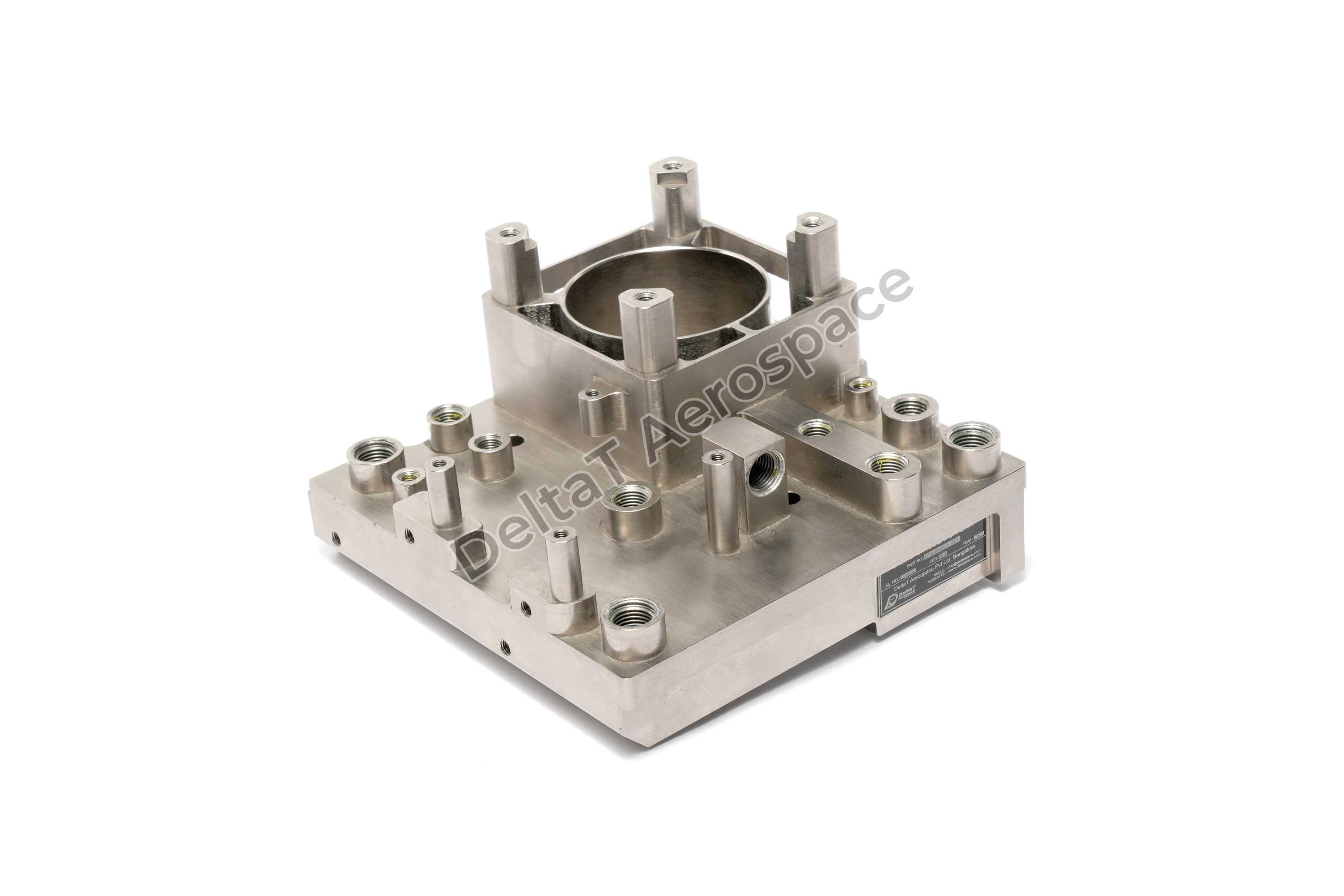

Liquid Circulation Unit

The Liquid Circulation is used as a subsystem of an airborne liquid cooling system. Liquid Circulation Unit circulate the liquid through the heat load as well as other cooling system components like heat exchangers, interconnecting pipes etc. LCU will have various sensors to monitor the operation of the cooling system and house a control unit for controlling the operation.

    Technical Specifications

  • Design

    Liquid Circulation Unit
  • Function

    To circulate the liquid to the components
  • Construction

    2 -piece vacuum brazed
  • Operating condition

    10 lpm @7 bar
  • Coolant Capacity

    4 Litres
  • MOC

    Al 6061-T651
  • Dimensions

    180 x 180x 110 mm length
  • Weight

    1.8 Kgs (dry)
  • Application

    Fixed wing
Technical Specifications
Design Liquid Circulation Unit
Function To circulate the liquid to the components
Construction 2 -piece vacuum brazed
Operating condition 10 lpm @7 bar
Coolant Capacity 4 Litres
MOC Al 6061-T651
Dimensions 180 x 180x 110 mm length
Weight 1.8 Kgs (dry)
Application Fixed wing

Vital subsystem in airborne cooling, circulating coolant through heat loads and components, with integrated sensors and control for efficient thermal management.
