Compact Air/water cooled VCS

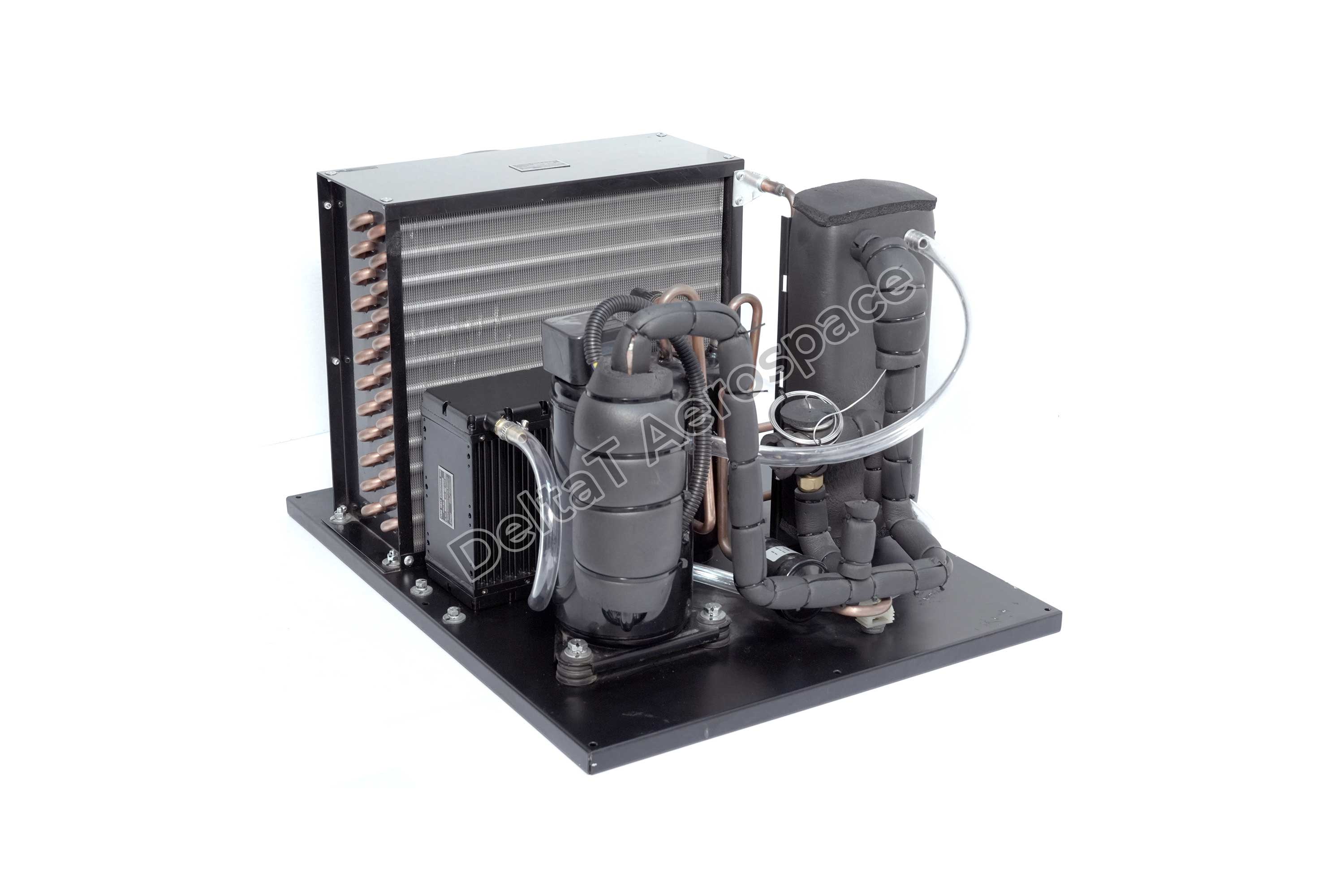

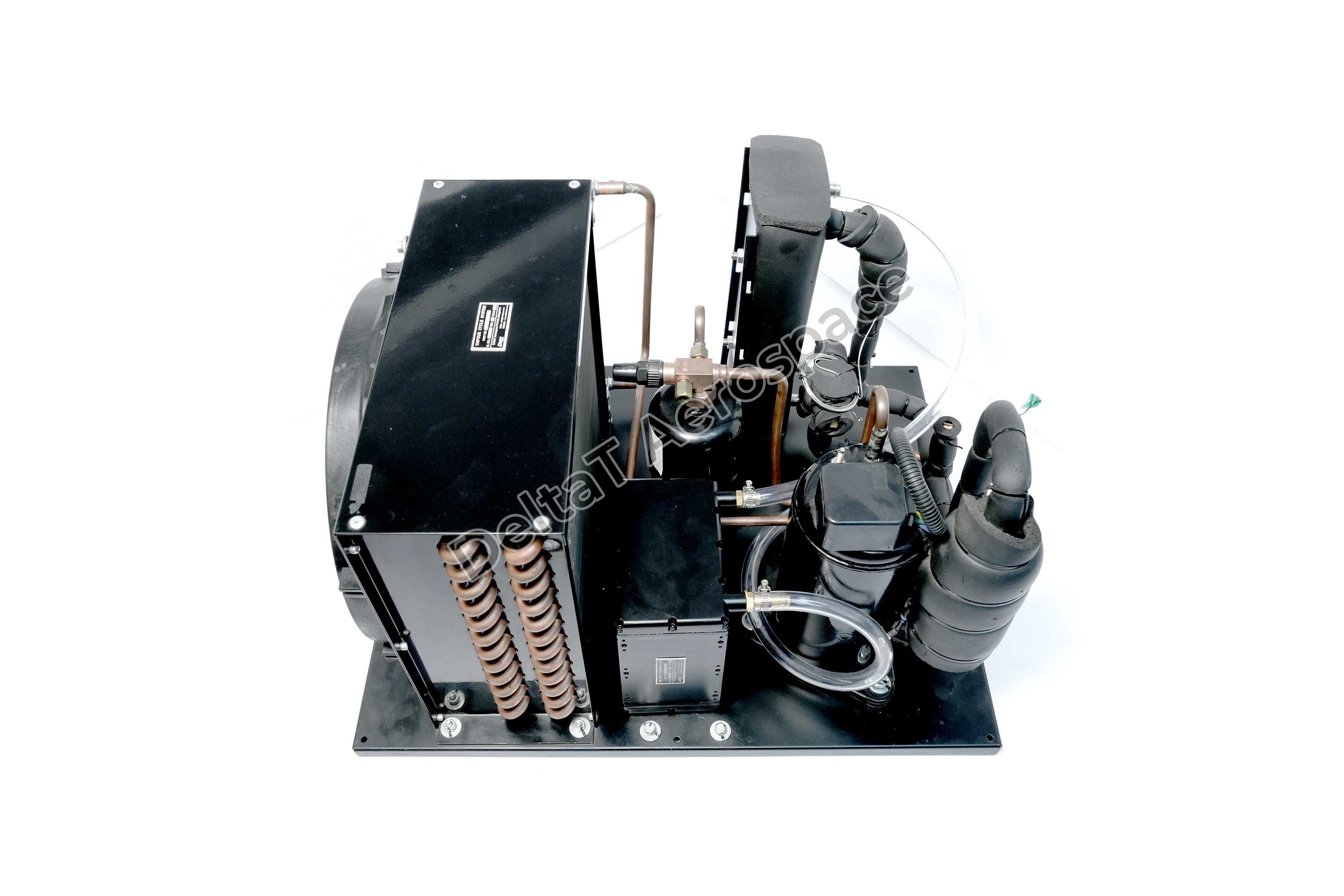

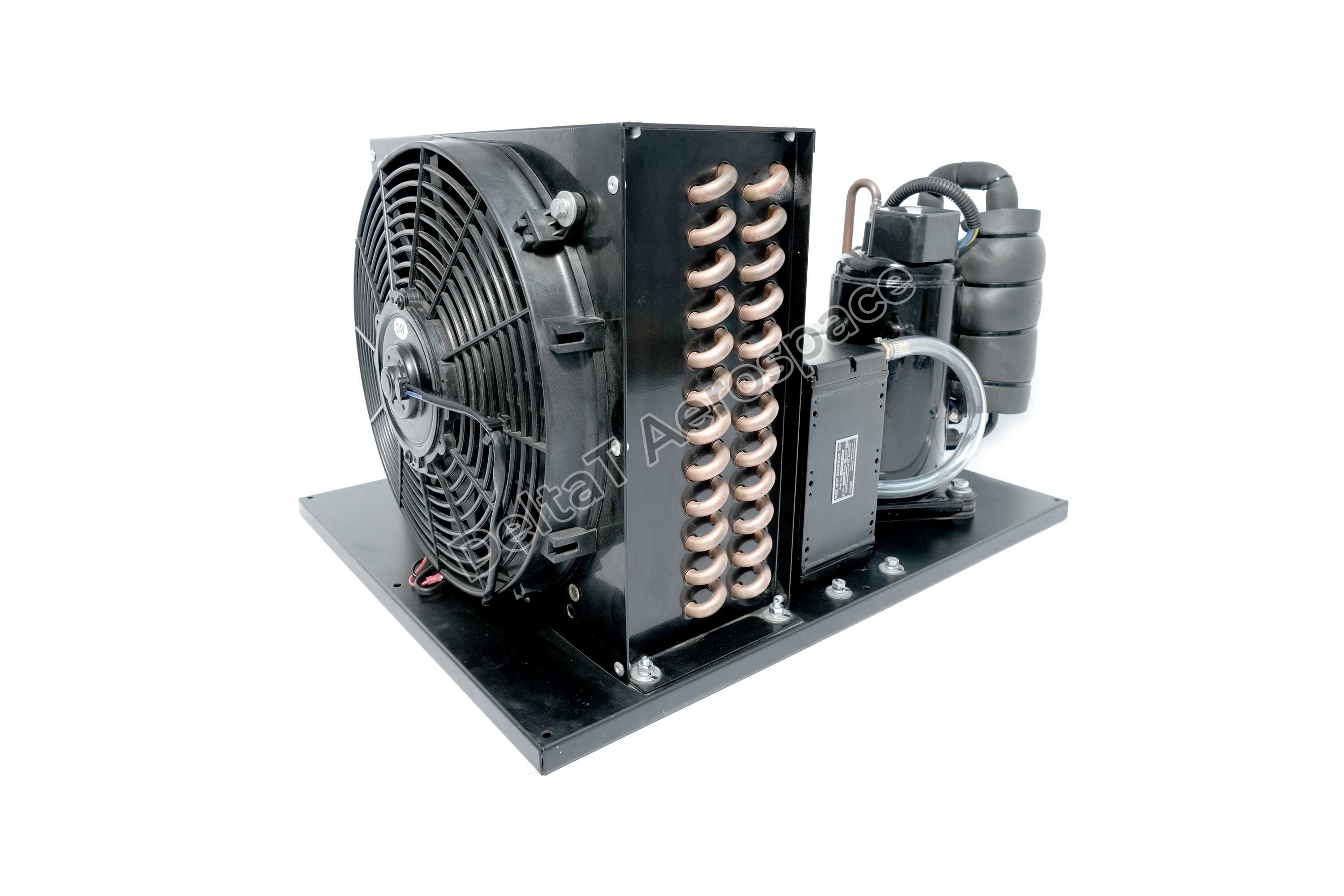

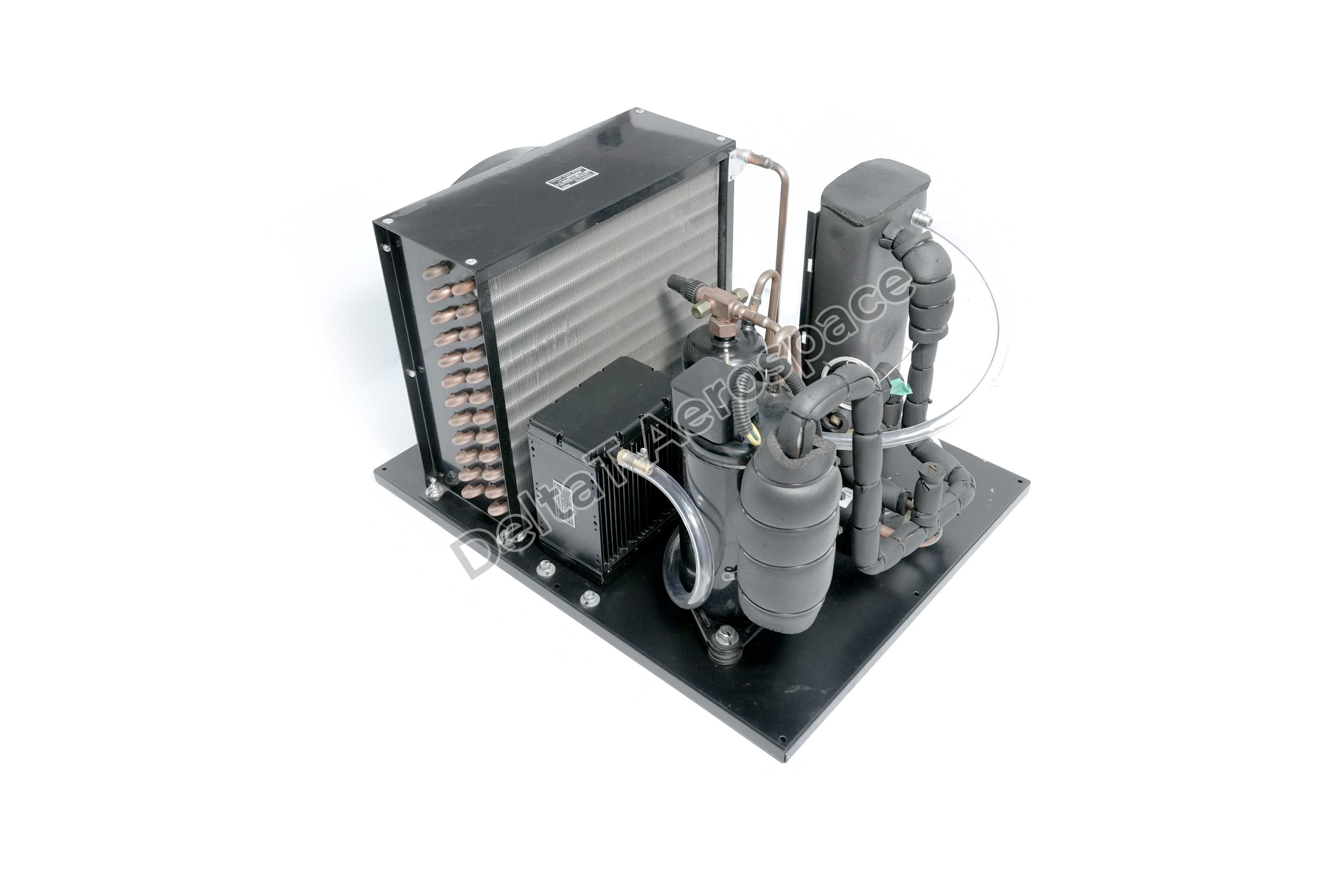

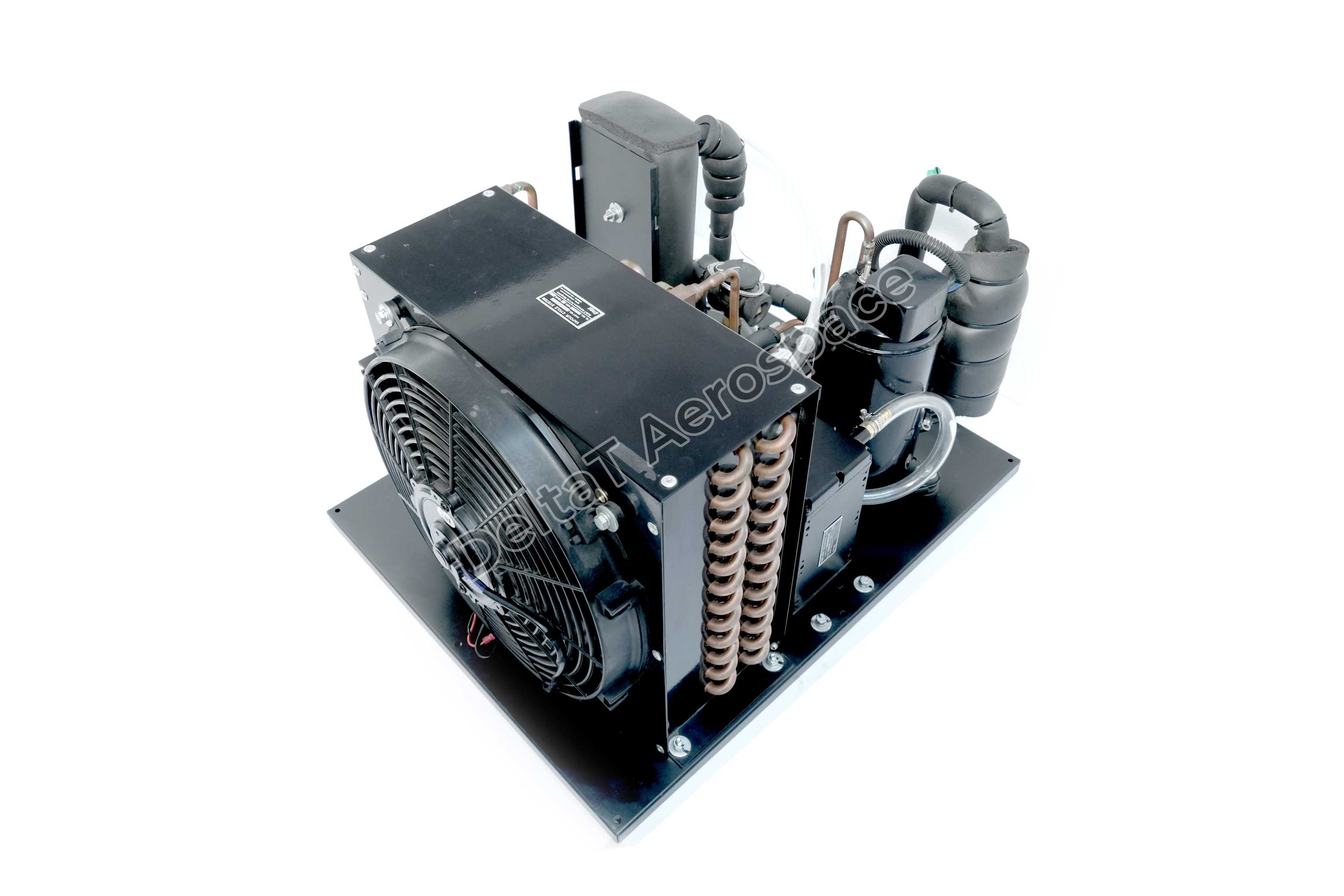

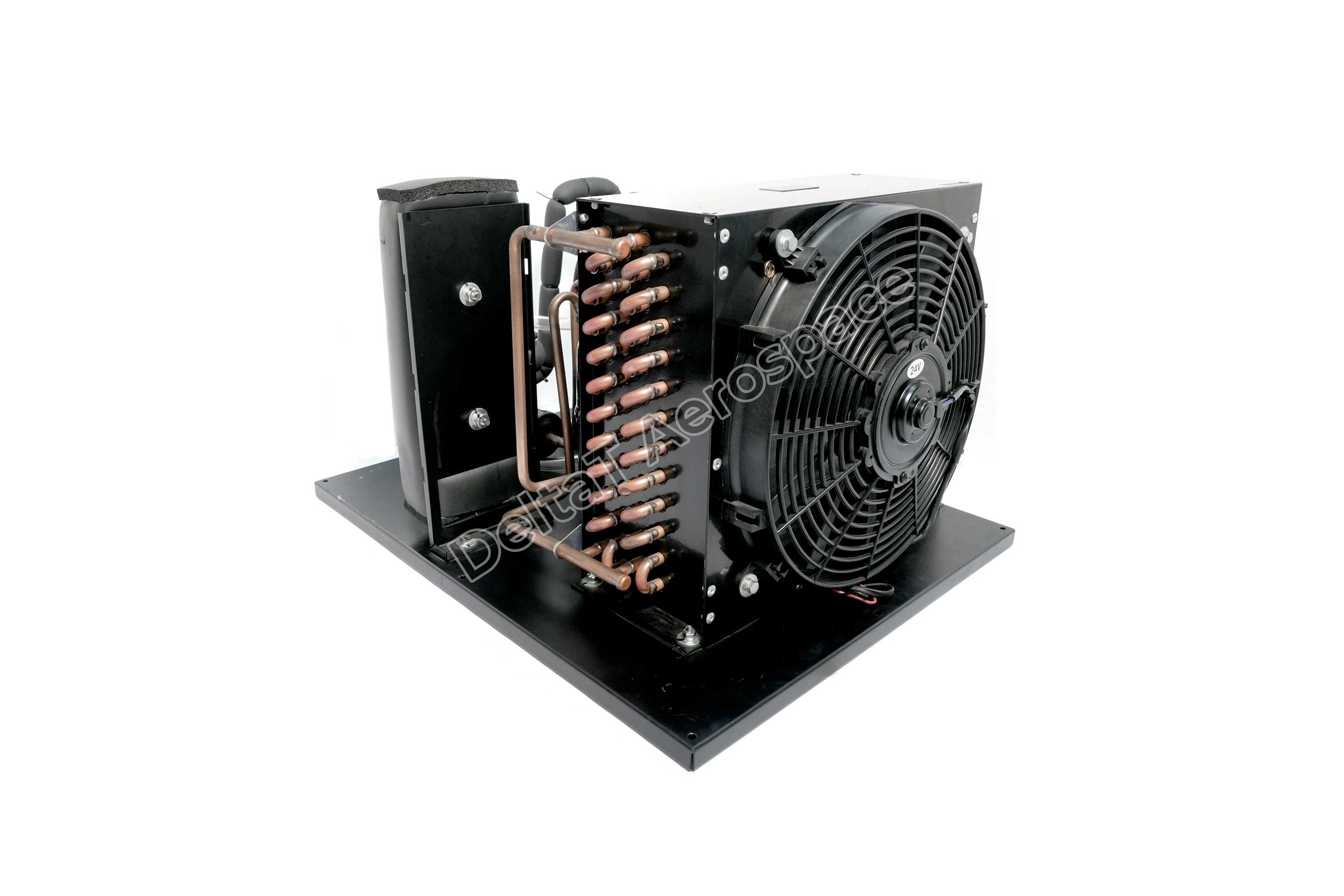

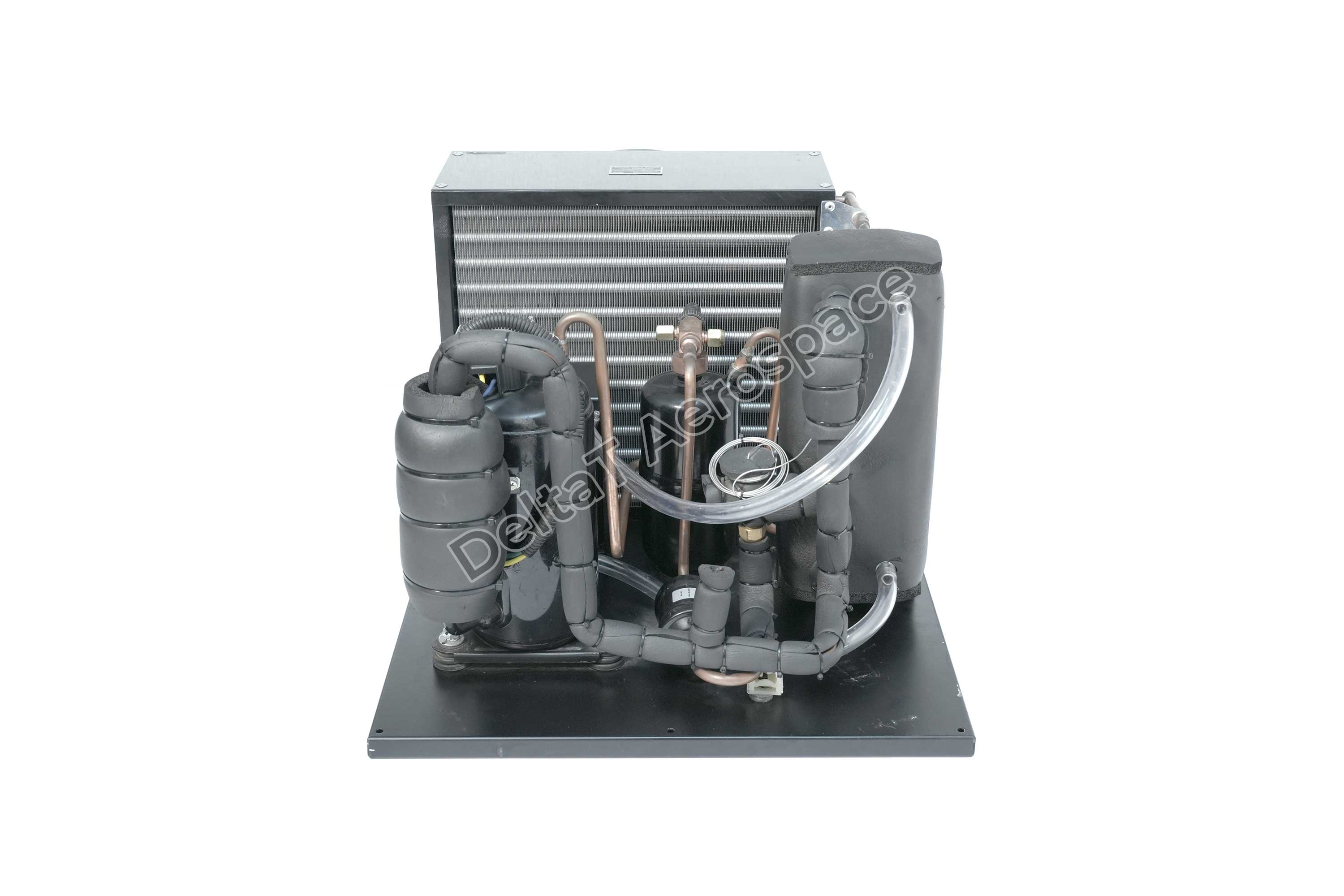

The compact air-cooled VCS is designed to supply cold air to the LRU or heat generating components. The VCS uses refrigerant such as R134a, R407C etc. its based-on vapor cycle technology, an efficient method of air condition and maintain the temperature as per desired requirements. The main components used in VCS are compact condenser, evaporator, compressor and expansion valve.

Key Features

  1. Low maintenance
  2. High reliability
  3. Higher COP
  4. Platform:Military
  5. Application:Ground defense
  6. Use:LRU /Rack cooling

Efficiently supplies cold air to LRU or heat-generating components. Utilizing vapor cycle technology and refrigerants like R134a and R407C.

    Technical Specifications

  • Cooling power

    upto 6kw
  • Power source

    28vdc / 230VAC/415 VAC
  • Refrigerant

    R134a /R245f /R1234f
  • Compressor

    Scroll type
  • Ambient temperature

    -30 to +45 deg c
  • Temperature control

    Auto or Manual
  • Temperature outlet(max)

    -20 °C at +50°C OAT
  • Weight

    33 kgs
  • Dimensions

    450x500x200mm
Technical Specifications
Cooling power upto 6kw
Power source 28vdc / 230VAC/415 VAC
Refrigerant R134a /R245f /R1234f
Compressor Scroll type
Ambient temperature -30 to +45 deg c
Temperature control Auto or manual
Temperature outlet(max) -20 °C at +50°C OAT
Weight 33 kgs
Dimensions 450x500x200mm
