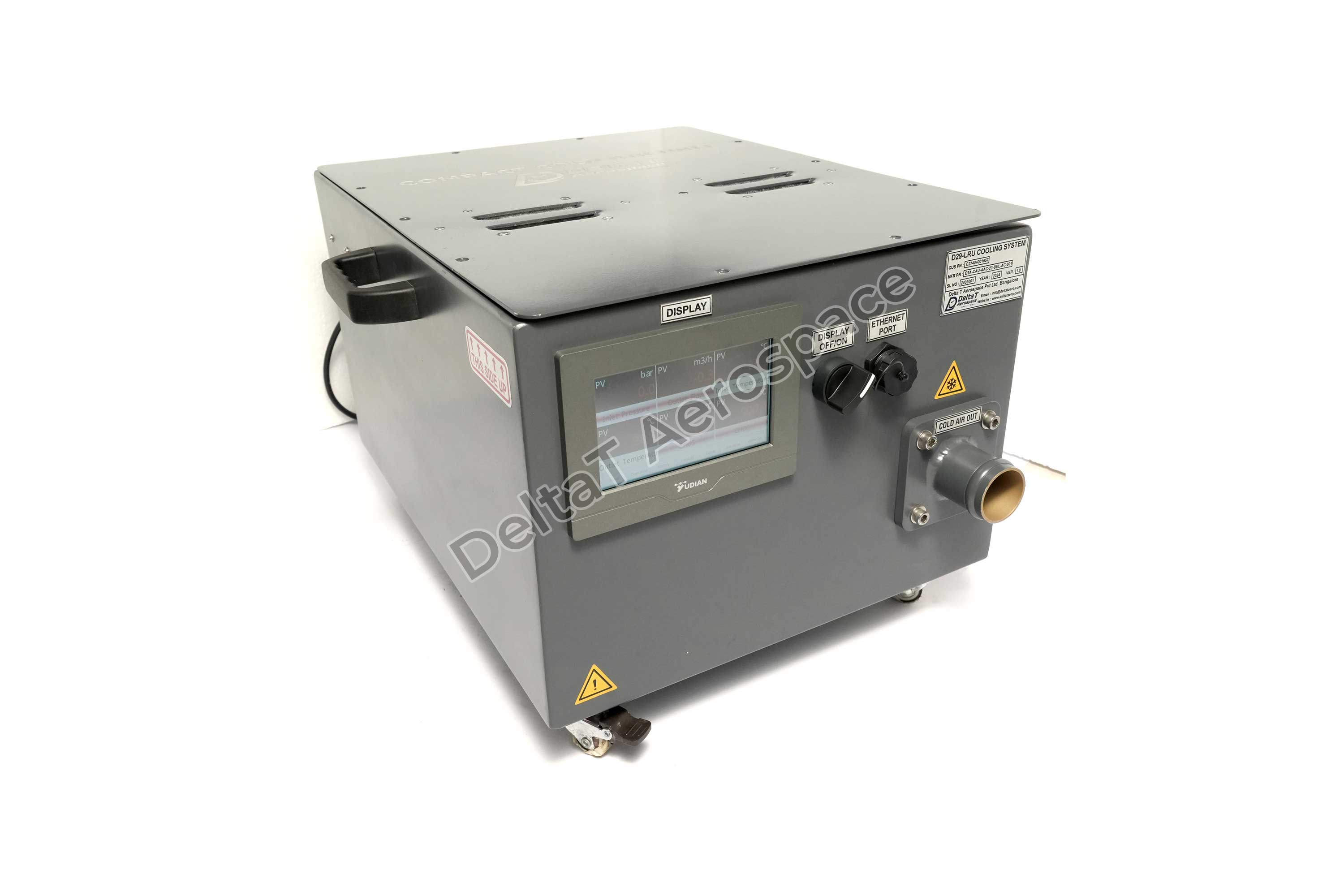

ACM based cooling system

ACM-based cooling system is designed using air cycle machine technology.The system is equipped with sensors, valves, heaters, display, and controllers to maintain the desired conditions of the cooling requirement.The ACM-based cooling system is packaged in an enclosure cabinet to bring the system as compact and portable.

Key Features

  1. High heat transfer
  2. Stable uniform temperature
  3. Lightweight and portable
  4. No maintenance
  5. Easy to Install

    Technical Specifications

  • Cooling capacity

    5.5 kW
  • Cooling method

    Air-cooled
  • Coolant

    Air
  • External dimensions

    500x200x350 mm(approx.)
  • Ambient temperature

    -20 to 65 deg c@ 95% RH
  • Air outlet temperature

    -42 to 20 deg c @ 30% RH
  • Unit Weight

    15 kgs(approx.)
  • Cold air outlet flow rate

    300 kg/hr
Technical Specifications
Cooling capacity 5.5 kW
Cooling method Air-cooled
Coolant Air
External dimensions 500x200x350 mm(approx.)
Ambient temperature -20 to 65 deg c@ 95% RH
Air outlet temperature -42 to 20 deg c @ 30% RH
Unit Weight 15 kgs(approx.)
Cold air outlet flow rate 300 kg/hr

Designed with advanced air cycle machine technology.The ACM-based cooling system is housed in a compact, enclosure cabinet, designed for portability and space efficiency.
