Pumped Two- phase cooling system

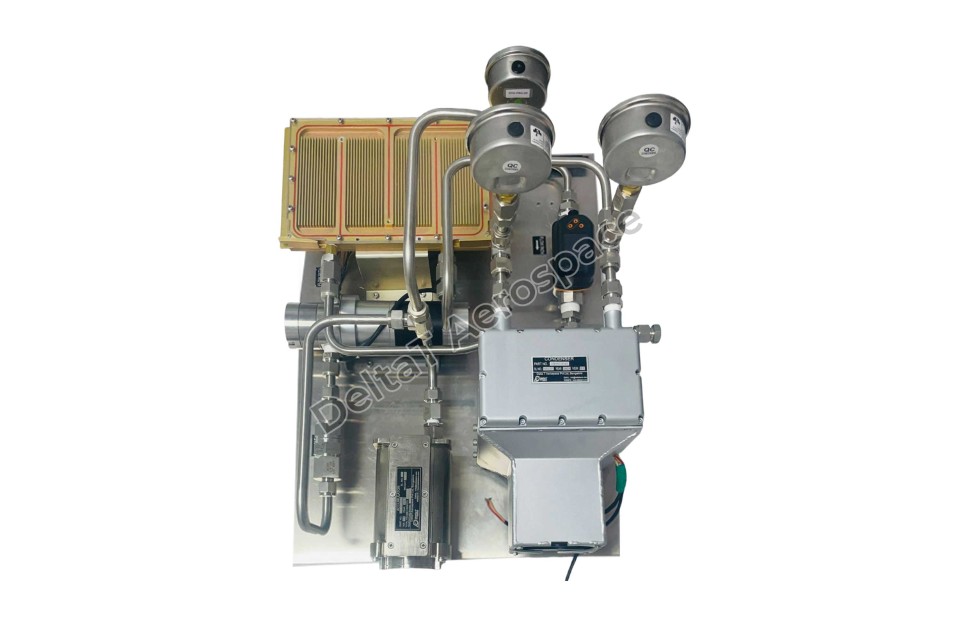

A pumped two-phase system is an advanced cooling and heat transfer solution utilizing a pump to circulate fluid that transitions between liquid and vapor phase within the closed loop system. This effectively manages and dissipate heat from high power heat sources such as power electronics and lasers. The main components used in pumped two phase cooling are pump, accumulator, microchannel evaporator, compact condenser, sensors, drive electronics
Benefits
- Reduced SWaP (Size, weight and power)
- Lower flow rate and pumping power
- Higher reliability
- Platform: Military / Space
- Use: Power electronic cooling / Laser / Chip cooling
An advanced cooling and heat transfer solution that uses a pump to circulate fluid transitioning between liquid and vapor phases within a closed-loop system.
| Technical Specifications | |
|---|---|
| Maximum heat load | 4 kW |
| Working fluid | R245fa /Acetone |
| Pump | BLDC driven pump |
| MOC | SS316L |
| Condenser | Compact plate & Fin /Flat tube |
| Evaporator | Microchannel cold plates |
| Flow rate | Variable |
| Weight | 22 kgs |
| Dimensions | 450x500x200mm |
