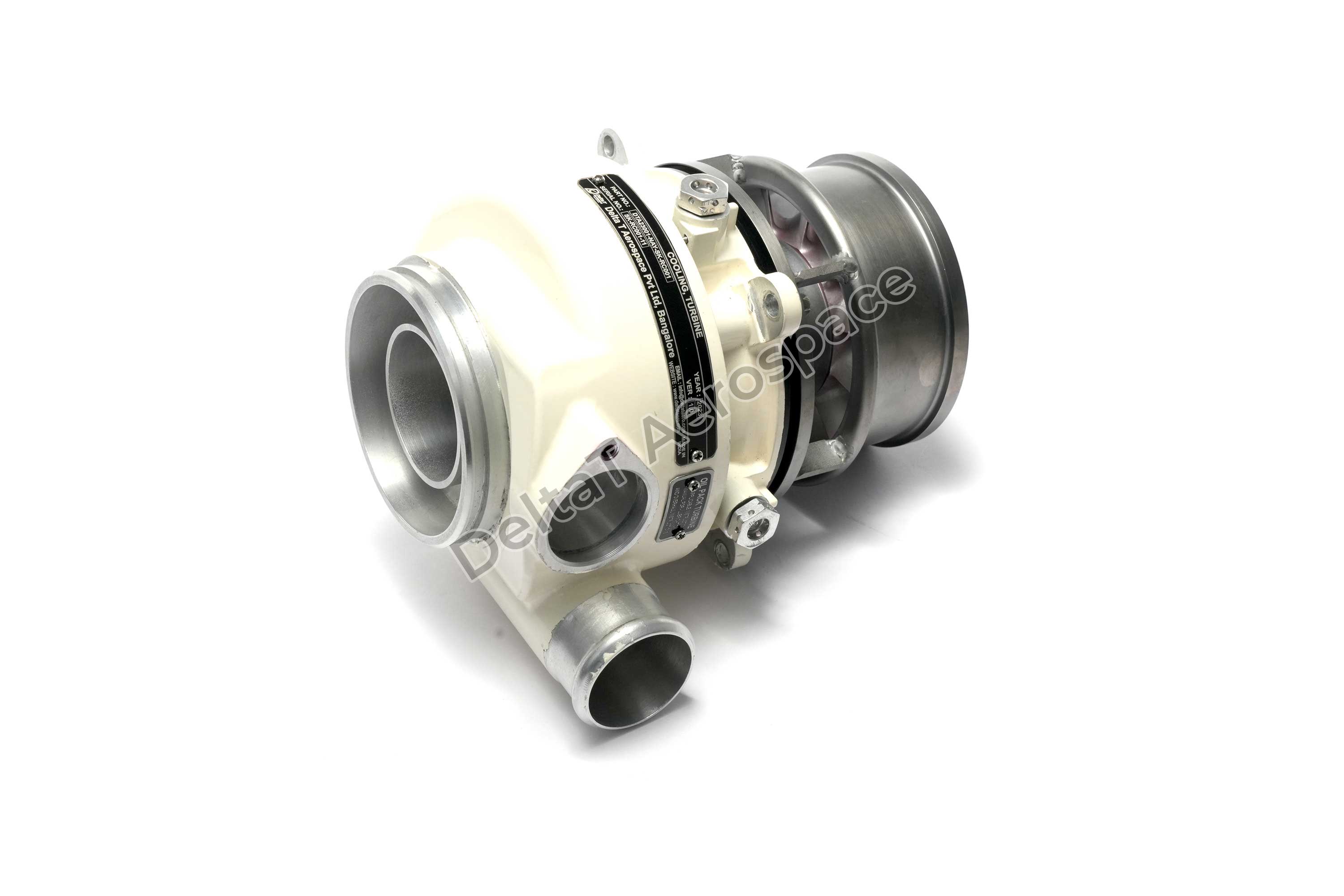

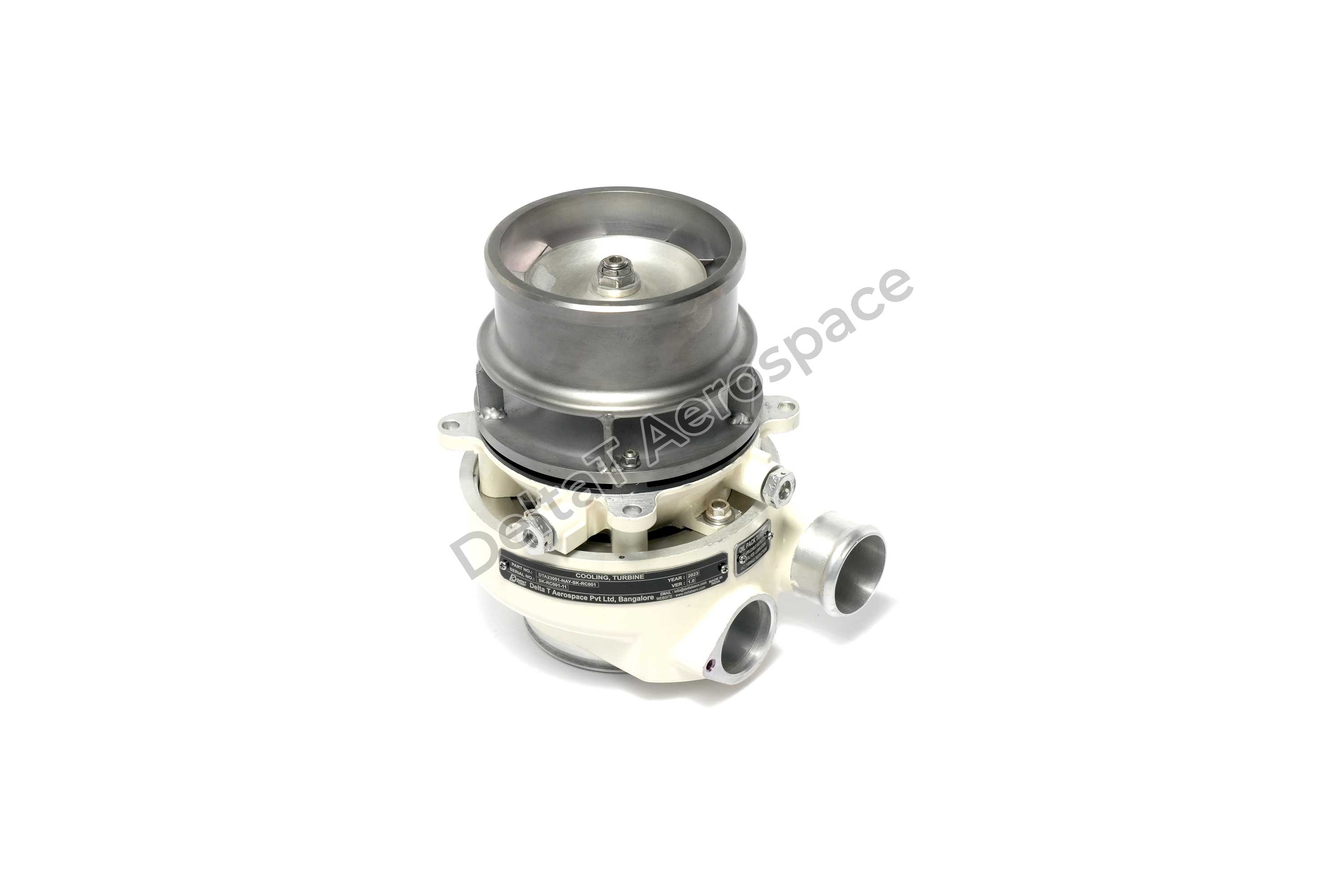

Air Cycle Machine

The Air Cycle Machine (ACM) is one of the main components used in the air conditioning pack for environmental control system of aircraft. ACM provides the cool air to cabin, cockpit, and avionics ECS bay. ACM is designed to meet the heat load of 4.5KW for ECS cooling application.

Key Features

  1. High Performance and reliability
  2. Adapted to high vibratory environment.
  3. High Compactness

    Technical Specifications

  • Cooling Power

    4.5 kW (Customizable)
  • Output temperature range

    -40°C to 90°C
  • Power Source

    Pressurized Air Flow from Engine 2-7.5 kg/min @ 2.5 bar abs/100°C max T
  • Cooling Media

    Air
  • Temperature range

    -40°C up to +60°C OAT
  • Dimensions

    Dia 180x250mm
Technical Specifications
Cooling Power 4.5 kW (Customizable)
Output temperature range -40°C to 90°C
Power Source Pressurized Air Flow from Engine 2-7.5 kg/min @ 2.5 bar abs/100°C max T
Cooling Media Air
Temperature range -40°C up to +60°C OAT
Dimensions Dia 180x250mm

Delivers 4.5 kW cooling for aircraft ECS, ensuring optimal temperature control in the cabin, cockpit, and avionics bay for enhanced comfort and performance.
