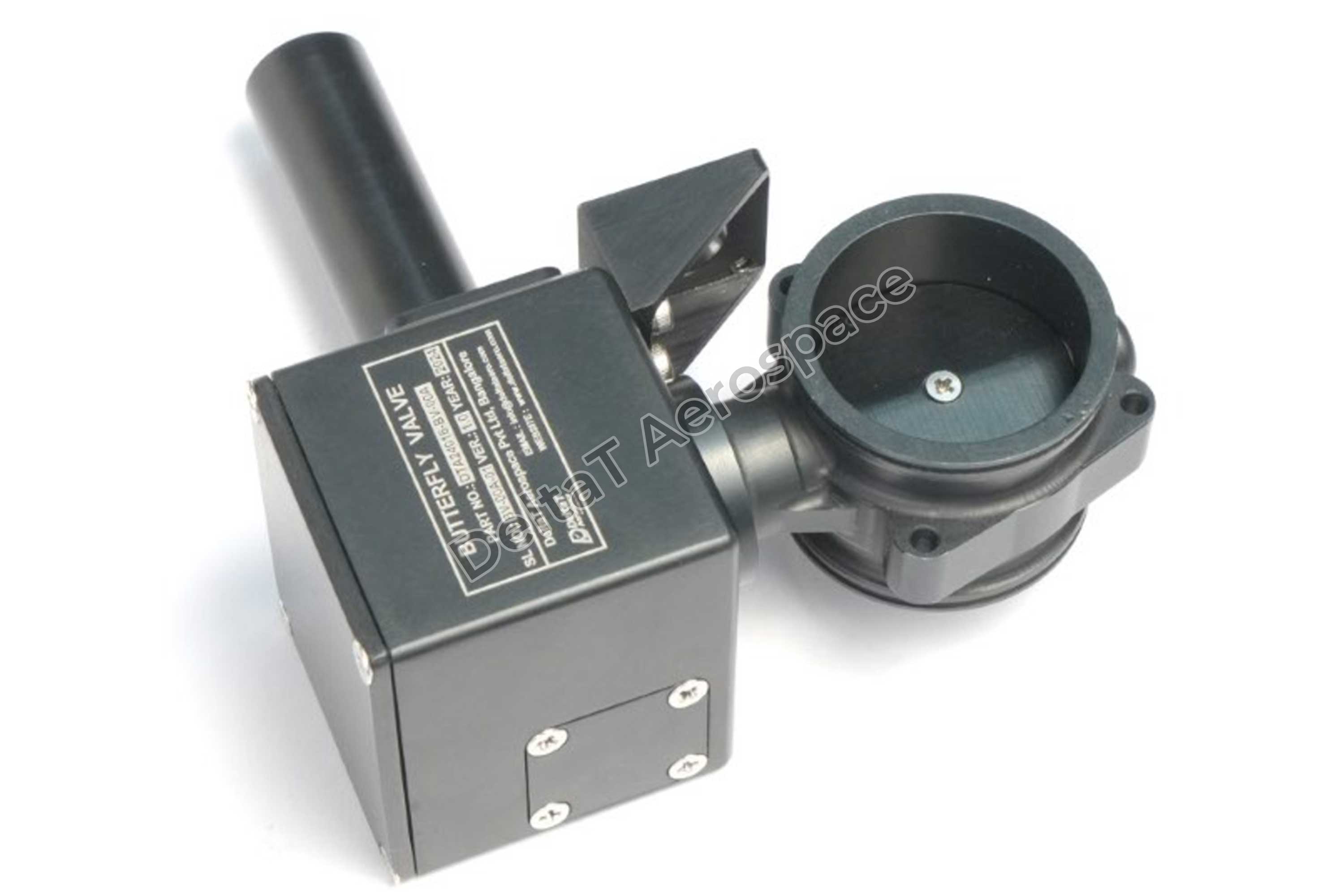

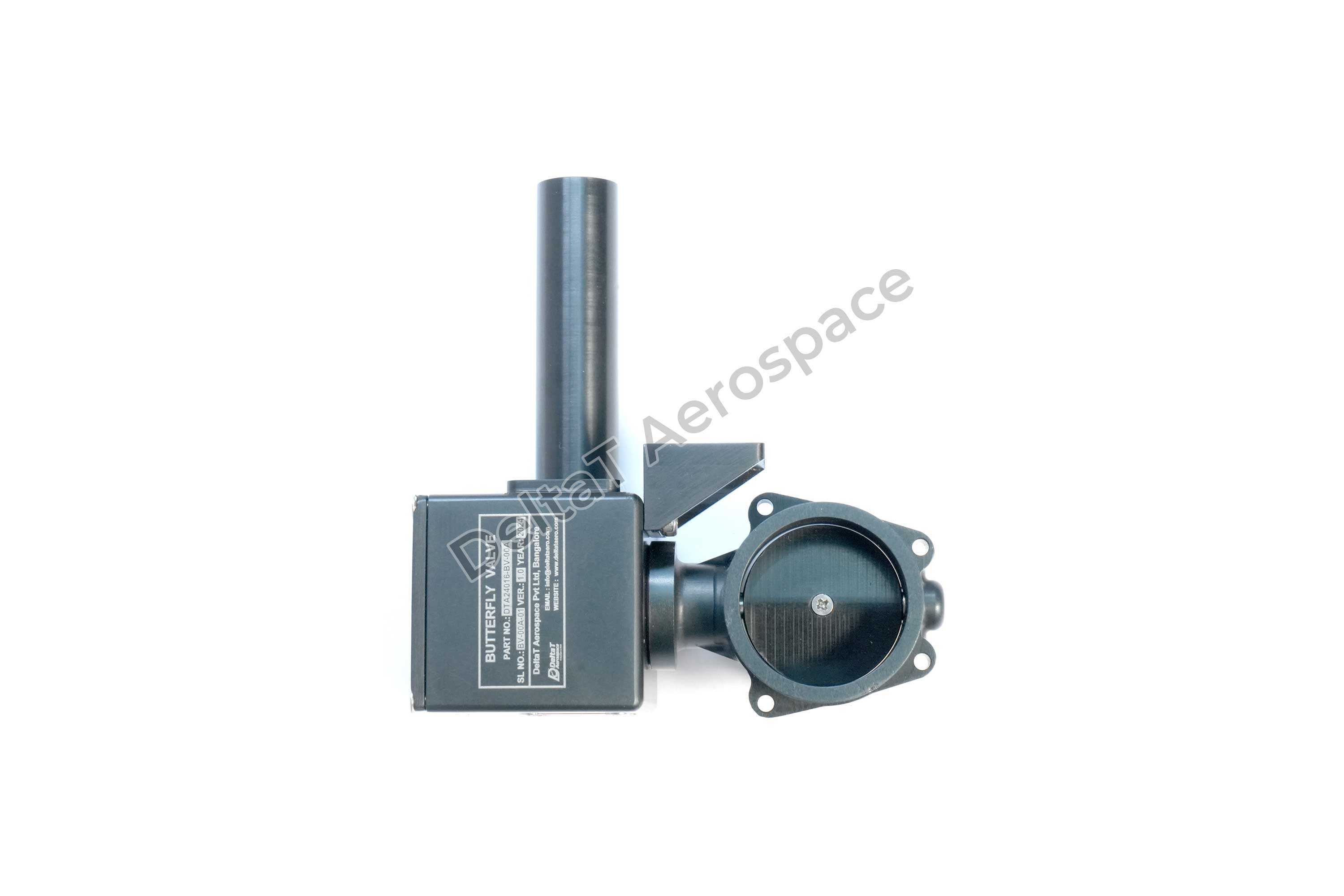

Electrically Operated Controllable Butterfly Valve

DTA custom designs and develops butterfly valves for pressure and temperature regulation of air systems. Butterfly valves are the most common type of valve used in the aerospace industry due to their relatively low pressure-drop characteristics and short installation length.

We offer highly reliable, low weight aerospace butterfly valves with PWM controlled variable settings for high flow rate, low pressure requirements. Aluminum material, line sizes 2" to 9", flow capacity 1 to 30kg/min and more.These butterfly valves are designed to meet MIL-STD-810/ DO-160 standards.

  • 35mm Orifice flapper valve with a 28V electrical actuator
  • Valve is controlled in different positions by PWM
  • 100W Electrical Heating Element on the body
  • Max power consumption for motor on 28VDC < 14 W
  • Platform : Fighter and Helicopter
  • Application :Flow Control

Lightweight, reliable aerospace valve designed for precise air system control—ideal for high flow, low pressure applications with flow rates from 1 to 30 kg/min.

    Technical Specifications

  • MOC

    Aluminium body
  • Max weight

    < 0.69 kgs
  • Max operating temperature

    < +100 deg c
  • Max operating pressure

    < 2.2 Bar(gauge)
  • Opening/closing time

    < 8 s
Technical Specifications
MOC Aluminium body
Max weight < 0.69 kgs
Max operating temperature < +100 deg c
Max operating pressure < 2.2 Bar(gauge)
Opening/closing time < 8 s
