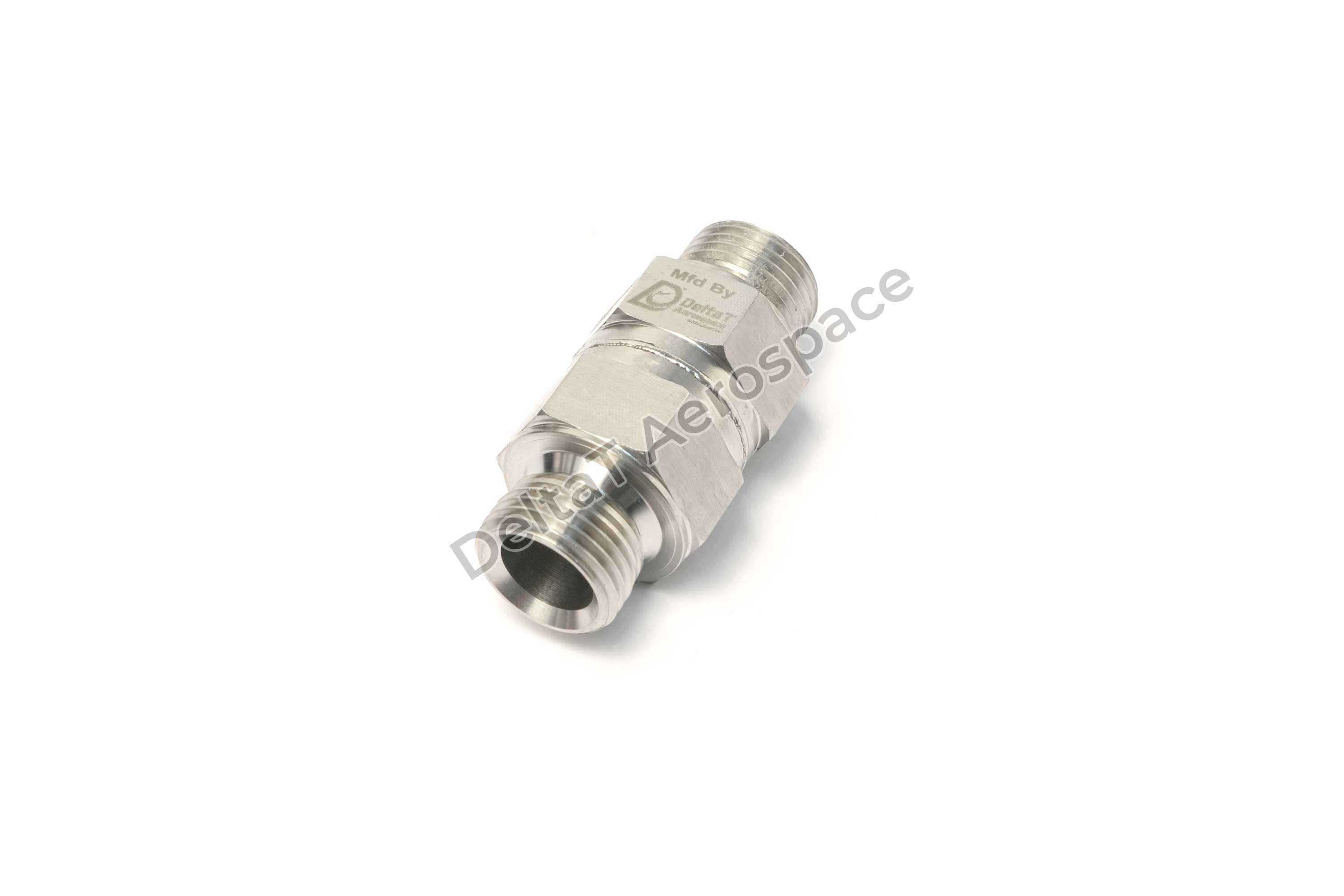

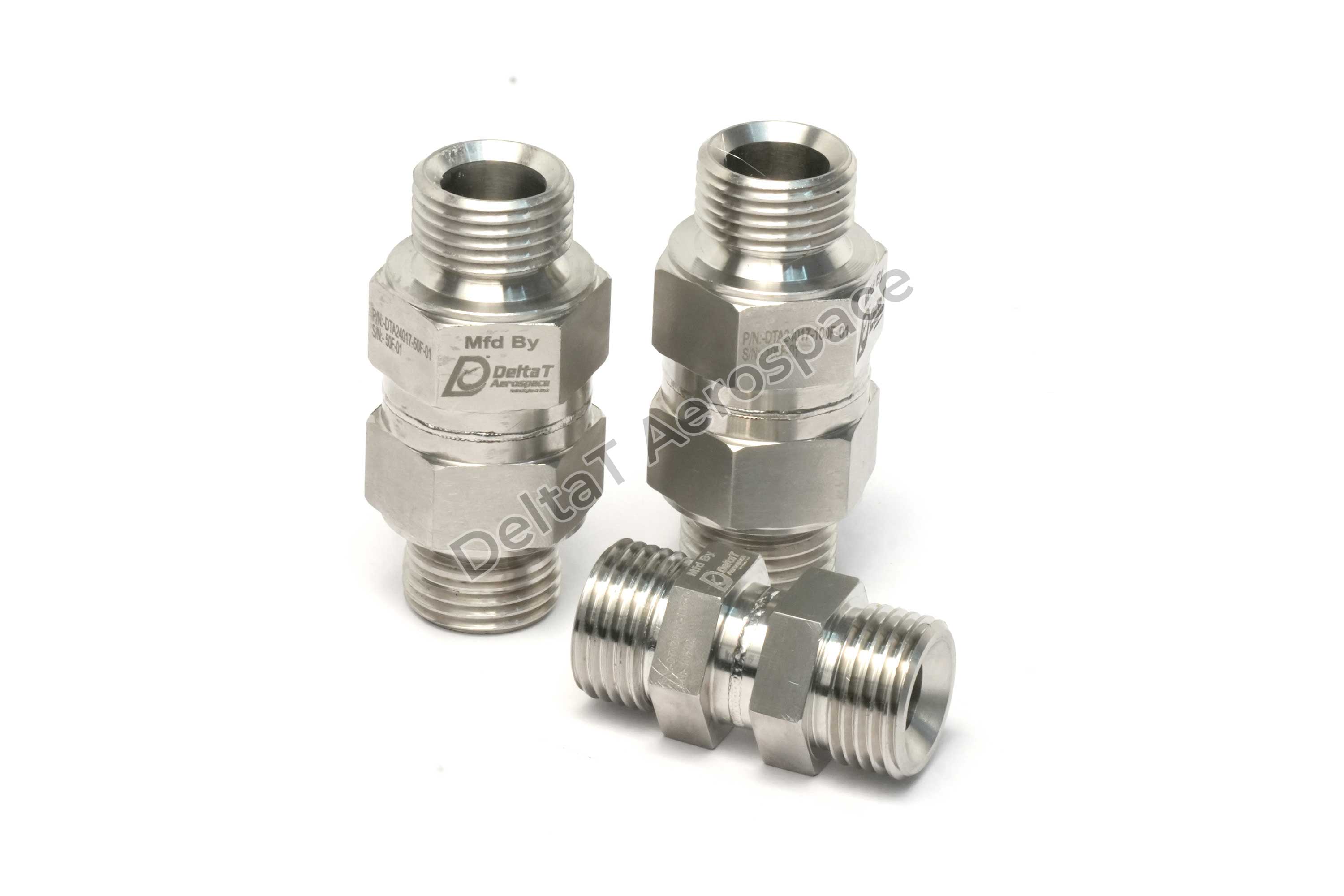

The filters are used to protect pumps and other hydraulic circuits from contamination. Our inline critical filters provide compact, lightweight, reliable & economic protection of critical components. Filter media is an integral component to the filter assembly. These filter discs are designed and stamped to the size of 10,50 & 100 microns. Discs are manufactured from woven wire mesh of SS316 and sintered power. These discs are reliable filtration protection in critical area of systems to remove contaminants which might otherwise clog or damage control components.

Technical Details

• Housing

  SS 316L

• Operating Pressure

  20 bar

• Port Size

  ½ “BSP/NPT

• Port Type

  Male

• Element

  SS wire mesh, porous sintered

• Micron rating

  10,50,100 Microns

• Collapse pressure

  0.3 MPa
