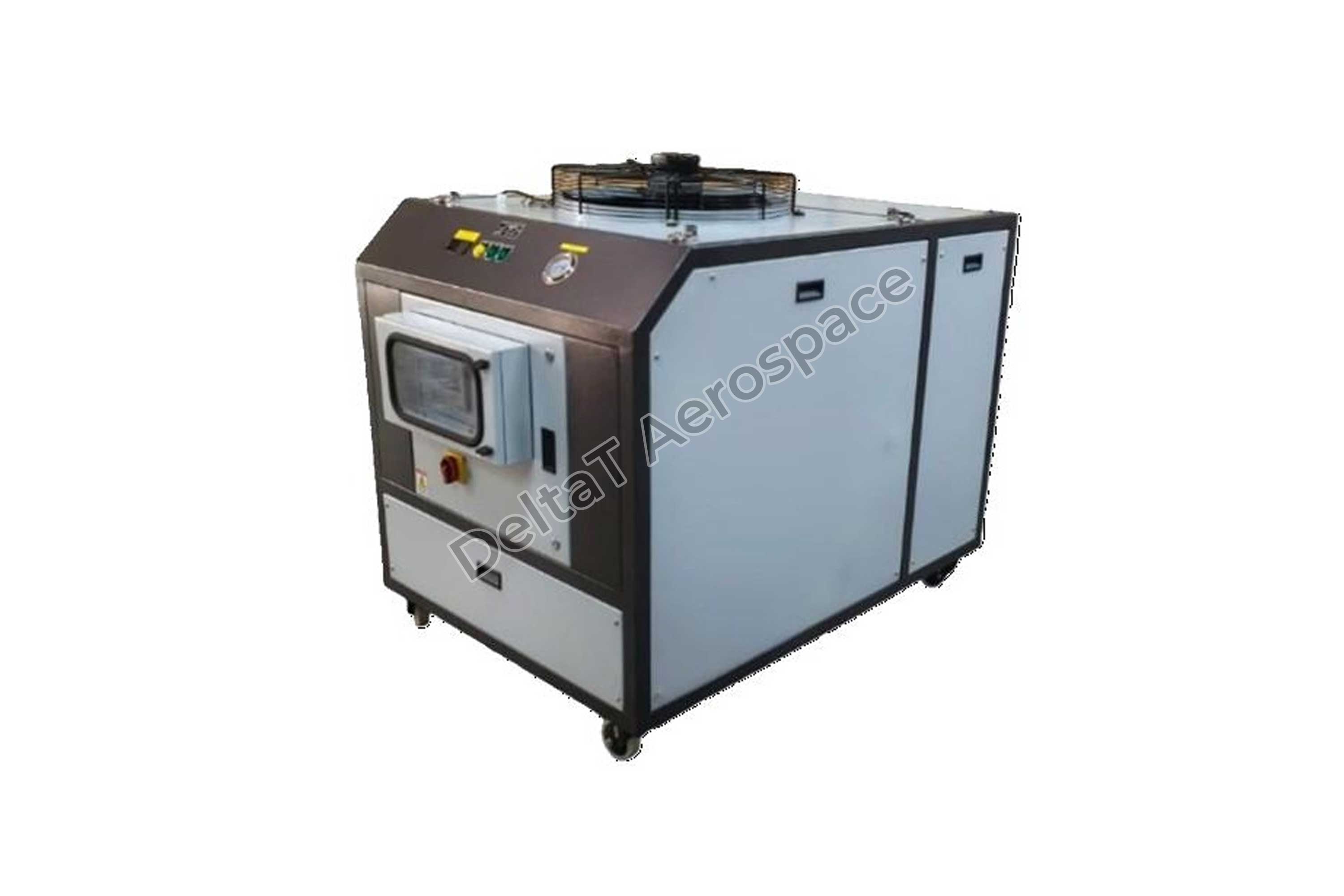

Air / water Chiller Unit
DeltaT chillers guarantee a cost-effective solution for precise temperature control and absolute reliability.The Compact Chillers are customisable and designed to meet high durability ,reliability and serviceability requirements which ensures reduced maintenance costs and extended lifetime.
DeltaT uses vapor cycle technology for the chiller which employ miniature AC/DC compressors, making them exceptionally compact and lightweight.Designed for cooling air and liquids ,these chillers utilize a vapor cycle to extract and dissipate heat from various liquids.
DeltaT Chillers offer a reliable and cost-effective solution for precise temperature control. Our Compact Chillers are fully customizable and engineered to deliver exceptional durability, reliability, and serviceability.
| Technical Specifications | |
|---|---|
| Cooling capacity | upto 77 kW |
| Refrigerant | R407c / R134A |
| Weight | 120kgs |
| Dimensions | 1200x1200x1000 mm |
| Flow rate | upto 65 lpm |
| Coolant pressure | Upto 20 bar |
| Type of compressor | Scroll |
| Type of controller | Microprocessor/PLC |
| Type of Condenser / MOC | Air cooled condensor / Copper tubes with Aluminium Fins |
| Type of Expansion Device | Capillary |
| Type of Evaporator / MOC | Brazed Plate Heat exchanger / SS 316 plates |
| Reservoir Volume / MOC | 25 ltrs / SS 304 |
| Type of Surface Coating | Powder coated |
| Power Supply | 1 PH, 230 V, 50 Hz /415V -3PH |
| Temperature stability | +/- 2 deg c |
| Cooling Media | Air/DI water/ EGW(with ratio) |
| Recorder | Paperless recorder with 12 channel option |
| Noise | ≤ 68 dBA |
