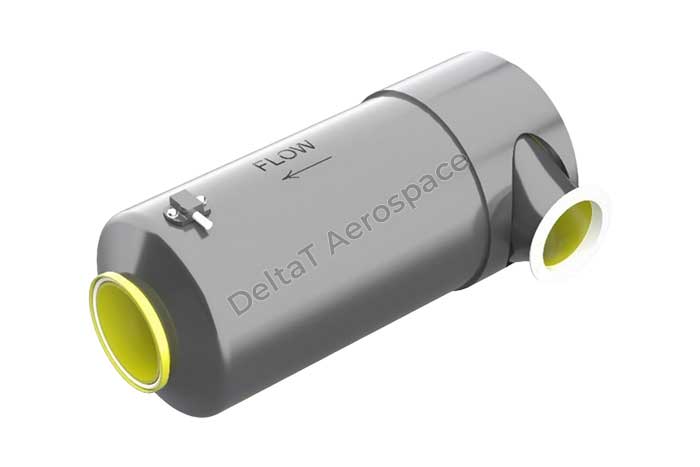

Low Pressure Water Separator

The Water Separator in Aircraft is a critical component that used to condition the air in ECS by removing the water and other contaminants. The unit will be a blanket coalescer type,configuring swirl vanes to achieve final water extraction.The coalescer will be removable in situ through a cover at the inlet.A relief valve is integrated.

Performance Parameters

  1. Nominal mass flow and max. Pressure drop:The maximum mass air flow is to be 17 kg/min at 60°C and an inlet pressure of 16 psia.
  2. Differential Pressure:4 psi
  3. Nominal mass flow and max. Pressure drop:With a through mass air flow rate 16 kg/min at an absolute humidity of 18g of water/kg of dry air, and a temperature of 5°C and inlet pressure of 300 psig,the extractor efficiency should not less than 83°C.

    Technical Specifications

  • Working fluid

    Air
  • Max. operating pressure

    14 psig
  • Operating temperature range

    Max Temperature 85 °C
  • Weight

    2 Kg (Max)
  • Overhaul life

    On condition
  • Total Life of the component

    On condition
  • Duty Cycle

    Continuous
Technical Specifications
Working fluid Air
Max. operating pressure 14 psig
Operating temperature range Max Temperature 85 °C
Weight 2 Kg (Max)
Overhaul Life On condition
Total Life of the component On condition
Duty Cycle Continuous

Designed to condition air by removing moisture and contaminants. It features a blanket coalescer with integrated swirl vanes for efficient water extraction.
