Our Product

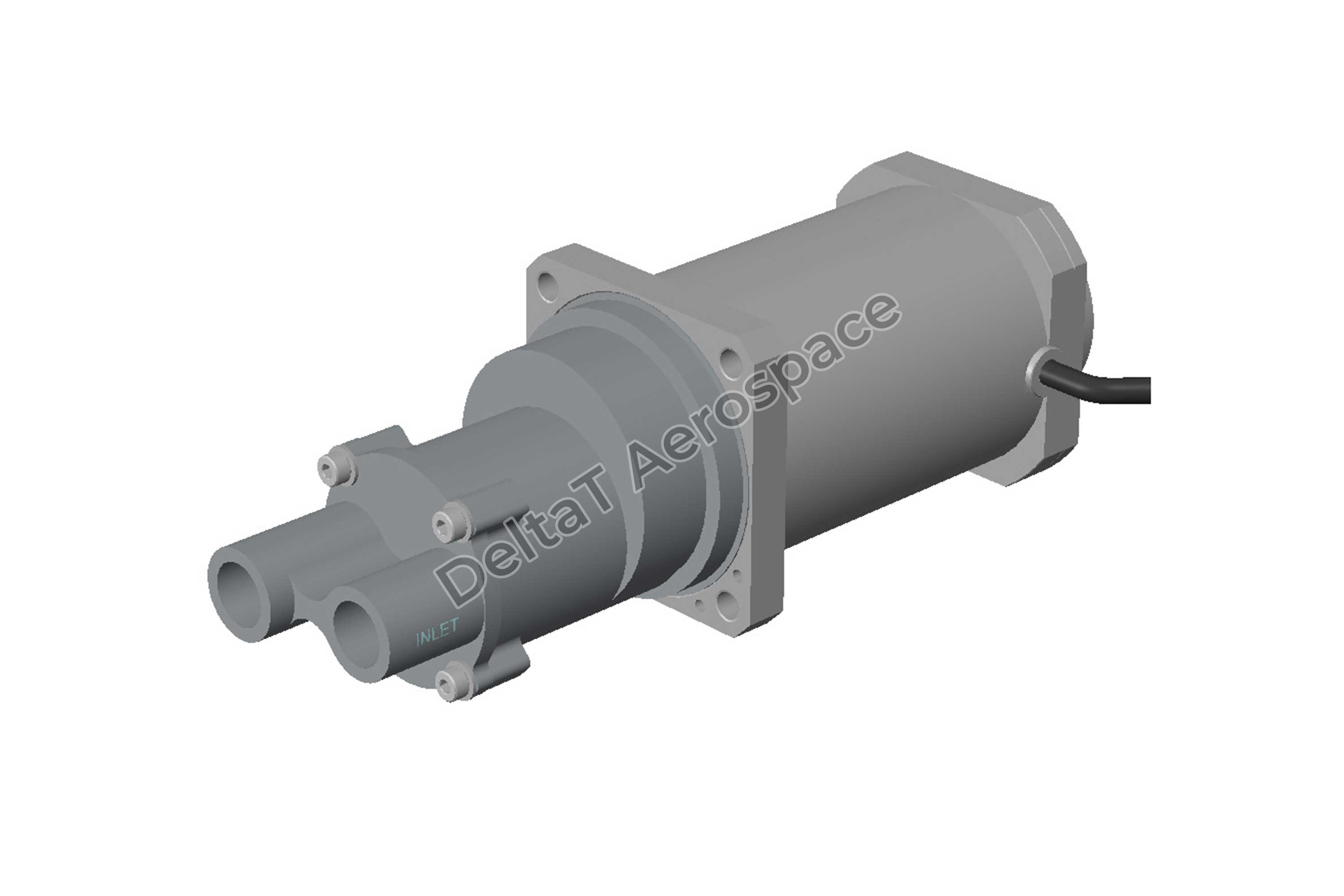

Coolant Pump

DeltaT have deep experience in the design, development, and manufacture of pumps tailored for use in aerospace applications. We produce high-performance military and aerospace pumps. Our design process considers all aspects of the application before forming an integrated solution resulting in maximum flow and pressure increase for a given volume and weight.

Features

  1. Magnetic coupling for hermetically sealed housing
  2. Aluminum housing for light weight
  3. Integrated Relief valve
  4. MIL-DTL-38999 Connectors/Flying Leads
  5. Compactness and Light weight
  6. Compactable to Solvents/Coolants
  7. Anodized finish as per MIL-A-8625
Functions
  • Compensates for thermal expansion of the liquid coolant
  • Prevents fluid surges and pulsations
  • Provides constant back pressure to preclude pump cavitation
Applications
  • Used in cooling system
Platform
  • Fighter aircraft and helicopter

High-performance aerospace pumps engineered for maximum flow and pressure with minimal volume and weight—custom-designed for demanding military and aviation applications

    Technical Specifications

  • Input Power

    Available in 115v,400Hz AC / 28Vdc

  • Working Fluid

    EGW (with ratio), PAO, PGW, Freon etc

  • Ambient Temperature Range

    -40 to +85 deg c

  • Working coolant temperature

    -40 to +150 deg c

  • Differential Pressure

    6 ± 0.5 bar

  • Flow rate

    12 ± 1LPM(fixed for AC) and variable for dc

  • Size(mm)

    90 D x 195 L

  • Weight(kgs)

    2.9 kgs

  • Motor Power

    6 lpm (125 watts) & 12 lpm (300 watts)

  • Working Noise

    under 55 dB(A)@1m

  • Life

    >20,000+ hrs

  • Inlet & Outlet port size

    Square flange (customizable)
Technical Specifications
Input Power Available in 115v,400Hz AC / 28Vdc
Working Fluid EGW (with ratio), PAO, PGW, Freon etc
Ambient Temperature Range -40 to +85 deg c
Working coolant temperature -40 to +150 deg c
Differential Pressure 6 ± 0.5 bar
Flow rate 12 ± 1LPM(fixed for AC) and variable for dc
Size(mm) 90 D x 195 L
Weight(kgs) 2.9 kgs
Motor Power 6 lpm (125 watts) & 12 lpm (300 watts)
Working Noise under 55 dB(A)@1m
Life >20,000+ hrs
Inlet & Outlet port size Square flange (customizable)
