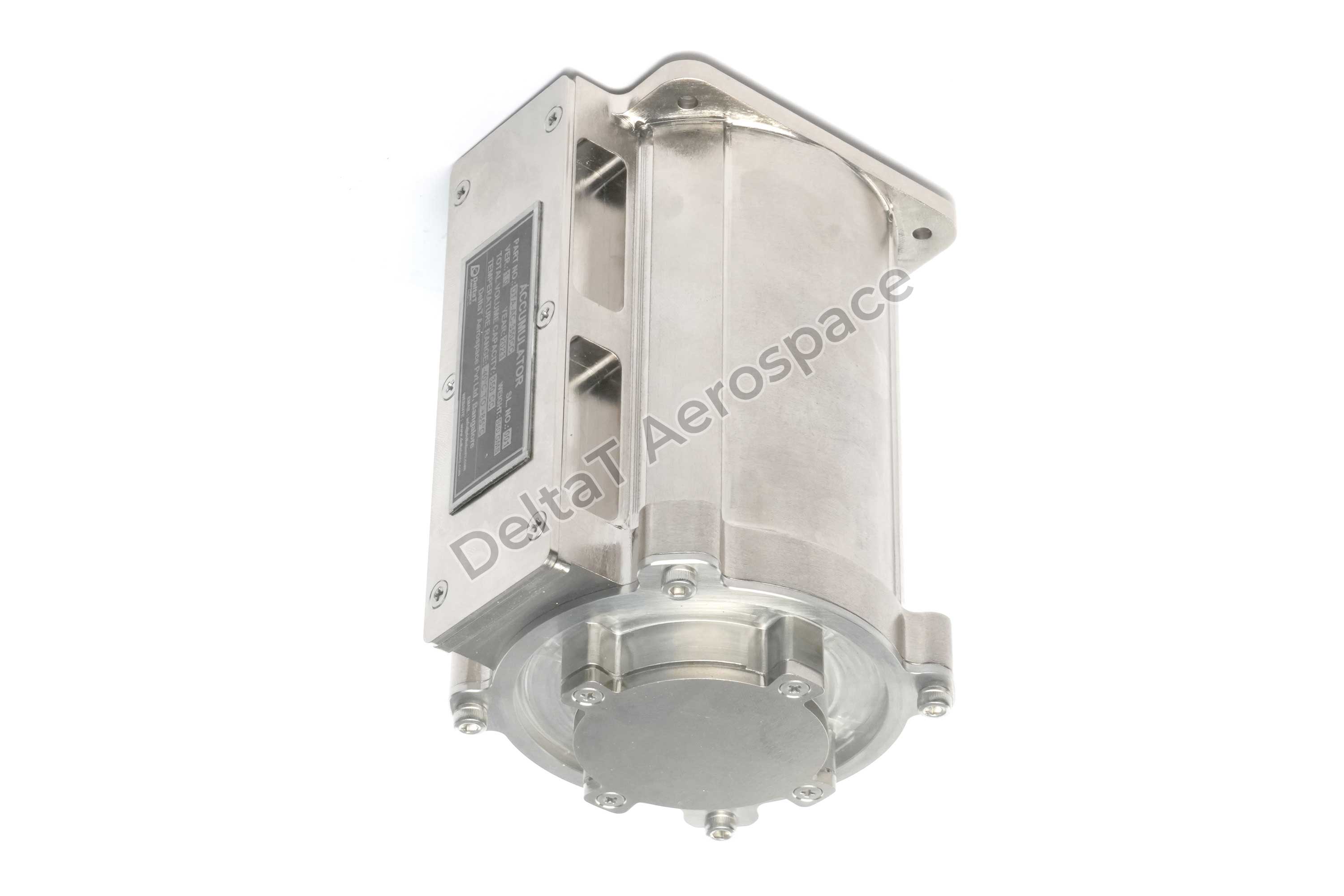

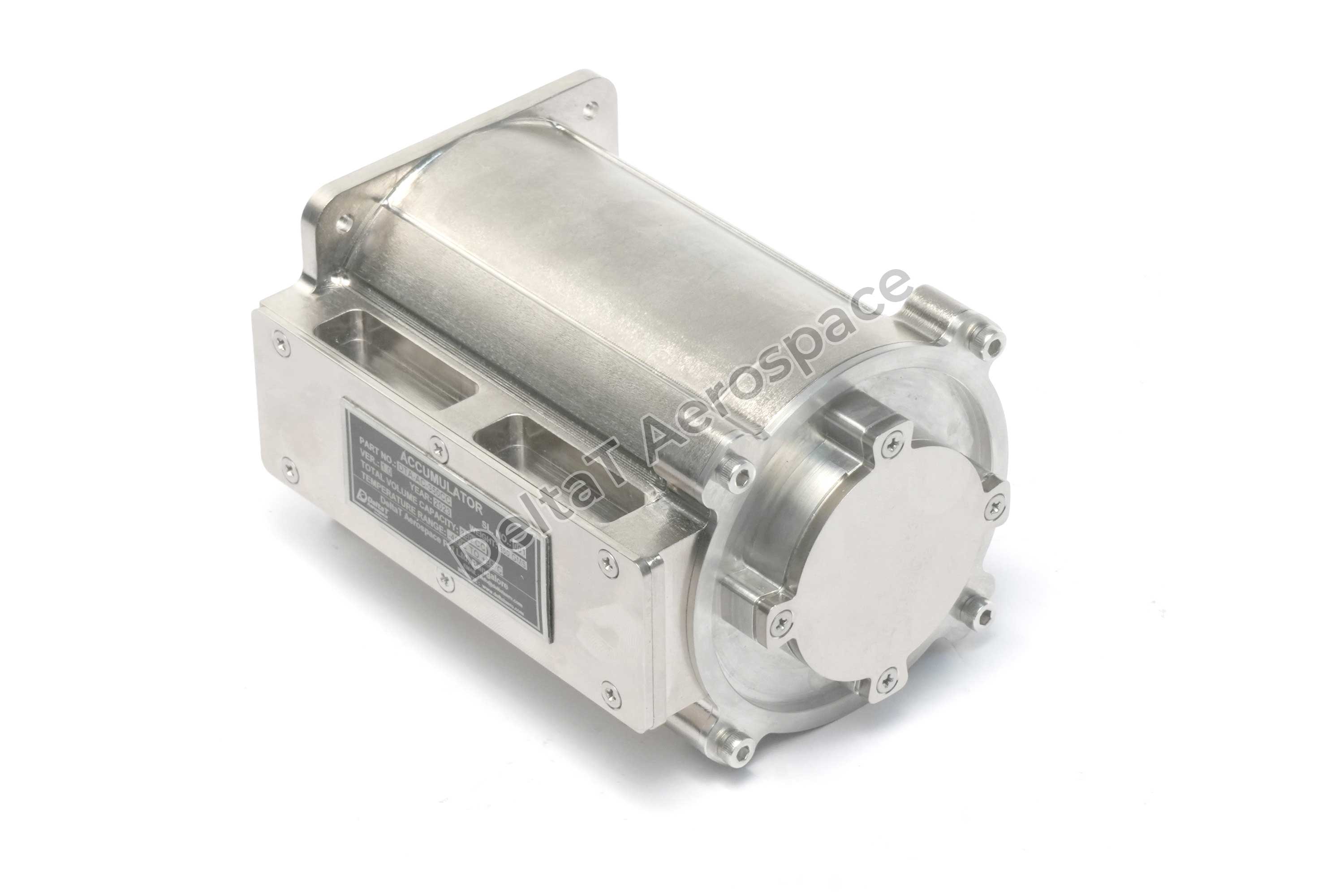

Accumulator

DeltaT designs and manufactures wide range of accumulators for airborne applications. Our accumulators are designed to meet the requirement of maintenance free operation in harsh environments.Our accumulators are compatible with a wide variety of fluids including water/glycol, hydraulic oil, refrigerants and dielectric coolants.

Key Characteristics

  • All metal construction -hermetically sealed.Mass spectrometer leak tested with leak rates as low as 1 x 10-9 cc/sec/He.
  • Long shelf life - hermetic ,all-metallic and maintenance-free design ensures a long shelf and operational life.
  • Compatible with all hydraulic fluids ,coolant fluids ,and a wide array of processing fluids including highly corrosive liquids.
  • Designed to minimize weight depending on the application.Product lines include all - titanium assemblies that are lightest available.
  • Fast response time -low mass design ensures that accumulator responds instantly to slight pressure or temperature changes.
  • No installation restrictions - can be oriented in any position or direction without affecting performance characteristics.
  • Low long-term cost.Zero-maintenance and long-life design eliminates failure modes.

Functionality of Bellows Accumulator

  1. Compensates for thermal expansion of the liquid coolant.
  2. Prevents fluid surges and pulsations.
  3. Provides constant back pressure to preclude pump cavitation.
  4. Provides the position indication by using the hall effect sensor.

Designed for maintenance-free fluid cooling in harsh aerospace environments, DTA accumulators support various fluids—ensuring reliability from fighter jets to high-altitude systems.

    Technical Specifications

  • Type

    Metal Diaphragm Bellows
  • Fluid

    Ethylene Glycol Water (EGW 60:40)/PAO, any solvents
  • Fluid Volume

    4.0 Liters
  • Working pressure

    3-4 bar
  • Burst pressure

    12.5 bar
  • Proof pressure

    5.25 bar
  • Operating Temperature

    - 55 deg C to +85 deg C
  • No of Fill /Empty cycles

    10000 or more
  • Control

    Built-in hall effect sensor to measure the fluid level
  • Power

    28-42VDC
  • Dimension

    80x90x150mm(aaprx)
  • Weight

    < 0.96 kgs (dry)
Technical Specifications
Type Metal Diaphragm Bellows
Fluid Ethylene Glycol Water (EGW 60:40)/PAO, any solvents
Fluid Volume 4.0 Liters
Working pressure 3-4 bar
Burst pressure 12.5 bar
Proof pressure 5.25 bar
Operating Temperature - 55 deg C to +85 deg C
No of Fill /Empty cycles 10000 or more
Control Built-in hall effect sensor to measure the fluid level
Power 28-42VDC
Dimension 80x90x150mm(aaprx)
Weight < 0.96 kgs (dry)
